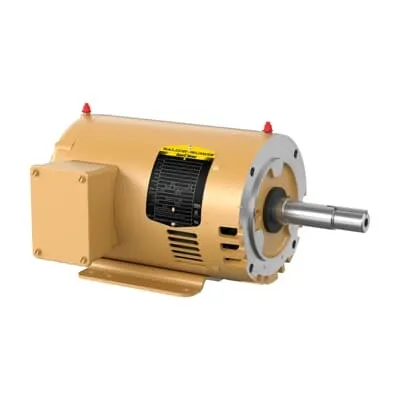

ABB 7BEJMM3158T-G Pump Motor - IE2 Premium Efficiency
Part Number: 7BEJMM3158T-G
Quick Summary
ABB 7BEJMM3158T-G pump motor drives reliable 3 HP performance for close-coupled pump applications in HVAC, water handling, and process systems. Engineers often confront energy waste, space constraints, and maintenance burdens when upgrading motors in retrofit projects. This unit carries CSA, CSA EEV, and UR certifications along with RoHS compliance, positioned within a NEMA framework for durable operation. With 230/460 V, 60 Hz three-phase power and an OPSB enclosure, it offers a compact, energy-efficient solution that reduces total cost of ownership while delivering consistent pump performance across demanding industrial environments. Compatible with Baldor-Reliance components and standard drive systems, it supports streamlined procurement and reliable field installation.
Product Information
Extended Description
7BEJMM3158T-G ABB: Pump Motor 3 Hp 230 V (EJMM3158T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,145JM,3530M,OP
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3158T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYZ957: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE2 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3158T-G
Gross Volume
3590.443 in³
Gross Weight
51 lb
Horsepower Rating UL/CSA
3.000 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
H
Invoice Description
3HP,3450RPM,3PH,60HZ,145JM,3530M,OPSB,F1
Made To Order
No
Medium Description
Close Coupled Pump, 3 HP, 3600 RPM, Frame Size 145Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJMM3158T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
87 %
Product Name
Close Coupled Pump
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
51 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.6 A | 3.8 A
Rated Efficiency
85.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35Z957P988G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
3 HP, 3600 RPM, Frame Size 145Jm, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
The 3 HP output at 230/460 V and 60 Hz three-phase supply delivers strong torque with high efficiency, meeting IE2 requirements to reduce energy consumption in continuous pump operation. This translates to measurable operating cost savings and a smaller carbon footprint for mid-size to large pumping systems. The OPSB enclosure protects the motor in challenging environments, while Direct On Line starting simplifies electrical integration and minimizes control hardware—ideal for retrofit projects where simplicity and reliability matter. The 145JM frame with C-Face drive end flange and foot-mount configuration ensures straightforward installation, alignment, and interchangeability with common pump bases, reducing downtime during maintenance or replacement. Insulation class H, a robust 0.87 power factor, and 85.5% efficiency contribute to dependable performance under normal and variable loads in industrial settings. Bearings (6206 | Ball and 6203 | Ball) support long life in demanding conditions, while the 2-pole, single-speed design aligns with standard pump curves for clean, predictable operation. The motor is RoHS compliant and built to NEMA design codes, ensuring regulatory alignment and compatibility with a wide supplier ecosystem. Stocked widely (US and international warehouses) with a 0-day lead time in some locations, enabling rapid fulfillment and reduced project delays. This combination delivers a solid return on investment by reducing energy use, maintenance costs, and downtime in pump-driven processes across cooling, water transfer, and industrial processing applications.
Get a Quick Quote for a ABB 7BEJMM3158T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM3158T-G?
Enquire Now
FAQs
The EJMM3158T-G uses a 145JM frame with a C-Face drive end flange and foot-mounted base, designed for horizontal mounting (F1). It supports direct-on-line starting and 230/460 V three-phase power at 60 Hz, making alignment straightforward and compatible with standard base plates and pump couplings. Ensure proper shaft alignment and secure mounting to prevent vibration and wear.
Key specs include 3 HP output, 2-pole design, rated speed 3450 r/min, synchronous speed 3600 r/min, PF 0.87, efficiency 85.50%, insulation class H, and IE2 premium efficiency. It operates on 230 V or 460 V at 60 Hz in a 3-phase configuration with a direct-on-line start, suitable for continuous-type pump duty.
Yes. It is rated for Continuous duty, features a robust OPSB enclosure, and is designed for dependable operation in demanding environments. The 3 HP output, 60 Hz performance, and IE2 efficiency support steady operation in process cooling, water handling, and other continuous pump applications while meeting regulatory standards.
The motor carries CSA, CSA EEV, and UR certifications, is RoHS compliant, and aligns with NEMA design standards (design code B). This combination supports regulatory compliance, safe interconnection with other equipment, and reliable performance in industrial settings.
The 6206/6203 ball bearings and steel frame provide long life with reduced maintenance intervals, while IE2 efficiency lowers energy costs over time. Direct-on-line starting minimizes control hardware and downtime, and wide warehouse stocking plus 0-day lead times in many locations shorten project timelines and improve ROI for pump retrofits and new installations.
