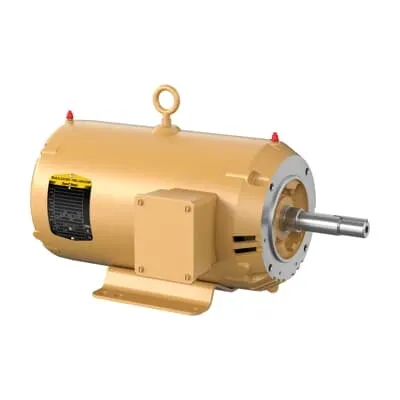

ABB EJMM3211T-5 Pump Motor - 3HP 575V IE3 Premium
Part Number: 7BEJMM3211T-5
Quick Summary
ABB EJMM3211T-5 Pump Motor is a 3 HP, 575 V three‑phase motor designed for reliable close‑coupled pump applications in industrial settings. Engineers often face downtime and inefficiency when pumps are undersized or poorly matched to the drive system; this motor addresses that by delivering robust DOL starting, a compact footprint, and proven reliability. It carries CSA, CSA EEV and UR listings, along with NEMA compliance and IE3 premium efficiency, helping you meet regulatory requirements while reducing energy use. With a flexible mounting footprint (C‑Face, foot mounted) and strong regional stocking, it supports fast integration and lower total cost of ownership across water treatment, chemical processing, and HVAC pumping systems.
Product Information
Extended Description
7BEJMM3211T-5 ABB: Pump Motor 3 Hp 575 V (EJMM3211T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182JM,3630M,OP
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3211T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYF971: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3211T-5
Gross Volume
5274.135 in³
Gross Weight
74 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182JM,3630M,OPEN,F1
Made To Order
No
Medium Description
Close Coupled Pump, 3 HP, 1800 RPM, Frame Size 182Jm, C-Face Mounting, 3 Phase, OPEN Enclosure, 575 V, 60 Hz (EJMM3211T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
76 %
Product Name
Close Coupled Pump
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
74 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.3 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 1800 RPM, Frame Size 182Jm, C-Face, 3 PH, OPEN, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Feature: IE3 Premium Efficiency reduces operating costs over the motor's life. Business Impact: Lower energy consumption translates to measurable savings on monthly electricity, improving ROI for pumping systems. Application: Water treatment, chemical processing, and HVAC pumping where continuous duty and energy intensity are high. Feature: 3 HP, 575 V, 60 Hz, 3‑phase design with Direct On Line starting. Business Impact: Simplified electrical infrastructure and faster commissioning, reducing installation time and control complexity. Application: Standard industrial pumps connected to conventional 575 V feeders in open‑panel environments. Feature: Open enclosure, steel frame (182JM), C‑Face drive end flange, and foot mounting. Business Impact: Easy installation and serviceability with a robust mechanical interface, minimizing downtime during maintenance. Application: Close‑coupled pump assemblies with horizontal mounting in tight spaces. Feature: NEMA design code B, 4 poles, and 1760 r/min rated speed. Business Impact: Predictable torque and performance under continuous duty, improving process stability. Application: Continuous‑duty pumping in harsh facilities where reliability matters. Feature: Insulation class F and 74 lb gross weight with 40 °C ambient tolerance. Business Impact: Enhanced insulation margins and durable construction for challenging environments, reducing rewinding needs and extending service life. Application: Industrial plants with elevated ambient temperatures and variable load. Feature: Certifications and standards (CSA, CSA EEV, UR; NEMA). Business Impact: Regulatory compliance and reliability assurance for regulated industries, facilitating audits and maintenance planning. Application: Medical, food and beverage, water treatment, and chemical processing settings where traceability matters.
