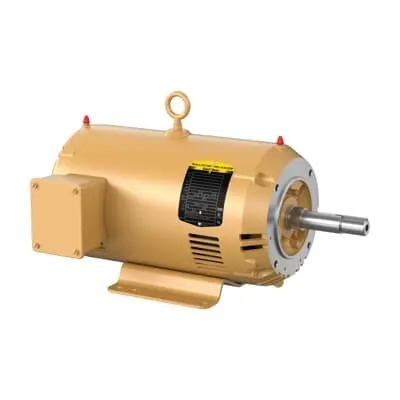

ABB 7BEJMM3212T-5 Pump Motor - CSA/UR Certified
Part Number: 7BEJMM3212T-5
Quick Summary
ABB 7BEJMM3212T-5 Pump Motor provides 5 HP at 575 V for industrial pumping applications. Engineers and buyers seek a rugged, drop-in solution that matches exact voltage, frame size, and mounting without complicating installation. This model carries CSA, UR, and CSA EEV certifications, along with an OPSB enclosure, C-face mounting, and a 3-phase, 60 Hz design to streamline regulatory compliance. Stocked at multiple warehouses and backed by immediate availability, it reduces downtime and procurement risk. With an IE1 efficiency rating and a service factor of 1.15, this motor offers dependable performance and favorable lifecycle costs for continuous operations in water handling, cooling, or general pumping systems.
Product Information
Extended Description
7BEJMM3212T-5 ABB: Pump Motor 5 Hp 575 V (EJMM3212T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3450RPM,3PH,60HZ,182JM,3622M,OP
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3212T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYG687: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE1 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3212T-5
Gross Volume
3590.443 in³
Gross Weight
63 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
5HP,3450RPM,3PH,60HZ,182JM,3622M,OPSB,F1
Made To Order
No
Medium Description
Close Coupled Pump, 5 HP, 3600 RPM, Frame Size 182Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 575 V, 60 Hz (EJMM3212T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
91 %
Product Name
Close Coupled Pump
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
63 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.8 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
5 HP, 3600 RPM, Frame Size 182Jm, C-Face, 3 PH, OPSB, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Feature → Close-coupled pump design with 5 HP, 182JM frame, C-Face mounting, and OPSB enclosure rated for 575 V at 60 Hz. Business impact: Delivers a compact footprint that simplifies installation, reduces alignment errors, and enhances protection against dust and moisture in demanding environments. Application: Ideal for close-coupled pump assemblies in municipal water handling, HVAC cooling loops, and industrial process pumps where space is at a premium and uptime matters. Feature → 3-phase 60 Hz, 2-pole drive with synchronous speed 3600 r/min and rated speed 3450 r/min. Business impact: Provides stable torque and predictable flow, minimizing pulsations and wear on pump components. Application: Fits standard pump trains and drives in productivity-focused facilities, especially where precise pump speed is needed for temperature control and fluid handling. Feature → IE1 efficiency, PF 0.91, insulation class F, rated current 4.8 A. Business impact: Lower energy consumption reduces operating costs and supports sustainability targets; PF improves power draw and reduces line losses. Application: Long-term duty in continuous pumping applications like water treatment, cooling towers, and process cooling where energy efficiency yields tangible ROI. Feature → Direct On Line starting, NEMA Design Code A, and service factor 1.15. Business impact: Simplifies control architecture and reduces motor starter costs while providing margin for short-term overload. Application: Suitable for automated plant lines with simple electrical schemes and high reliability requirements. Feature → Durable construction: OPSB enclosure, steel frame, foot-mounted base, horizontal orientation, shaft diameter 0.88 in. Business impact: Strengthens reliability in harsh environments and eases alignment with existing drive systems; compatibility with standard mechanical interfaces minimizes rework during retrofits.
