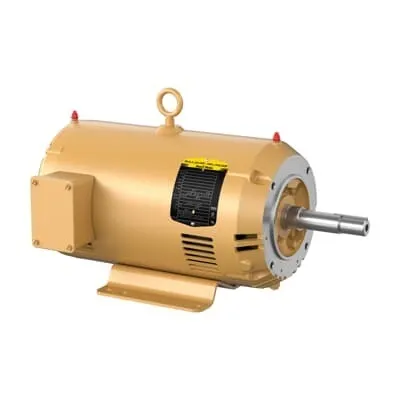

ABB 7BEJMM3219T-G Pump Motor - OPSB Enclosure
Part Number: 7BEJMM3219T-G
Quick Summary
7BEJMM3219T-G pump motor powers close-coupled pumps in 230/460 V three-phase systems. Engineers often face downtime, voltage mismatches, and slow delivery when sourcing motors. This ABB unit ships with NEMA-compliant design, CSA/UR certification, and robust insulation class H for demanding environments. Designed for industrial pump applications, it supports rapid deployment with 0-day lead time and global stocks, helping maximize uptime and reduce total cost of ownership. Featuring direct-on-line start and a robust OPSB enclosure, it minimizes control panel complexity and improves safety. For serviceability, 184JM frame and 0 day lead time help maintenance teams meet tight schedules. This combination supports efficient procurement and predictable budgeting.
Product Information
Extended Description
7BEJMM3219T-G ABB: Pump Motor 7.5 Hp 230 V (EJMM3219T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3450RPM,3PH,60HZ,184JM,3632M,
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3219T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
36LYT140: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE2 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3219T-G
Gross Volume
5274.135 in³
Gross Weight
78 lb
Horsepower Rating UL/CSA
7.500 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
H
Invoice Description
7.5HP,3450RPM,3PH,60HZ,184JM,3632M,OPSB
Made To Order
No
Medium Description
Close Coupled Pump, 7.5 HP, 3600 RPM, Frame Size 184Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJMM3219T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
89 %
Product Name
Close Coupled Pump
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
78 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.2 A | 8.6 A
Rated Efficiency
88.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
7.5 HP, 3600 RPM, Frame Size 184Jm, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature: Dual voltage operation (230/460 V) with 3-phase 60 Hz input. Business impact: Flexible power sourcing reduces wiring changes and inventory complexity, enabling quick pivot between supply voltages. Application: Pumps in mixed electrical environments. The ABB 7BEJMM3219T-G delivers consistent torque and reliable operation across sites that use either 230 V or 460 V mains. Feature: OPSB enclosure and C-face drive end mounting. Business impact: Enhanced protection and straightforward alignment streamline installation and reduce enclosure-integrity concerns. Application: Close-coupled pump assemblies in demanding environments. This setup supports easier alignment in retrofit projects and minimizes contamination risks in dusty areas. Feature: 7.5 HP rating with 60 Hz performance and 3450 r/min nominal speed. Business impact: Higher output with efficient power usage; predictable pump performance under continuous duty. Application: Process and beverage handling, water management, and general pump applications requiring steady flow. Feature: Efficiency and reliability metrics (IE2, 88.50% efficiency, Service Factor 1.15, Insulation Class H). Business impact: Lower operating costs, extended motor life, and reduced maintenance cycles. Application: High-demand systems where energy savings and uptime matter most. Feature: Frame 184JM, 0.88 inch shaft, and NEMA Design Code A with Direct On Line starting. Business impact: Standardized form factor simplifies replacement and retrofits; DOL starting reduces soft-start hardware needs. Application: Retrofit projects and new installations with common 184JM frames. Feature: Stock availability and rapid delivery (0 day lead time, multiple warehouses). Business impact: Shorter project timelines and improved procurement predictability. Application: Industrial facilities seeking fast turnaround for critical pump motor replacements and spares.
Get a Quick Quote for a ABB 7BEJMM3219T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM3219T-G?
Enquire Now
FAQs
Yes. The motor is dual-voltage (230 V | 460 V) and three-phase, 60 Hz, allowing flexible wiring configurations without the need for separate units. This minimizes inventory and simplifies integration with existing power distribution systems.
The unit uses a foot-mounted, C-face drive-end configuration with an OPSB enclosure. It is designed for horizontal mounting (F1) on a close-coupled pump, frame 184JM. Ensure appropriate shaft alignment, mounting surface, and standard wiring per NEC guidelines for Direct On Line starting.
The motor carries NEMA design inputs with CSA | CSA EEV | UR certification, aligning with U.S. safety and performance standards. It is a continuous-duty, 3-phase motor suitable for industrial environments requiring reliable operation.
Yes, it is rated for Continuous duty with a Service Factor of 1.15. The motor delivers 88.50% efficiency (IE2) at 60 Hz, supporting energy-conscious operation and reduced operating costs over the motor life.
Lead time is listed as 0 day, and the motor is stocked at multiple warehouses for rapid fulfillment. Warranties align with standard vendor terms; product under warranty must be returned as per policy guidance.
