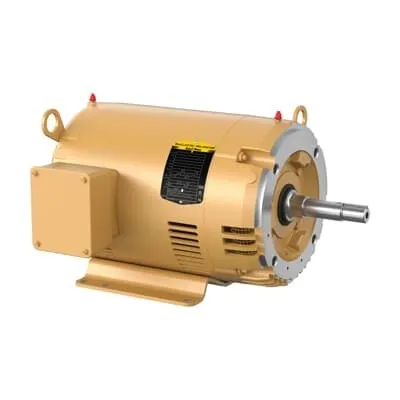

ABB 7BEJMM3312T-5 Pump Motor - 10HP, 575V OPSB
Part Number: 7BEJMM3312T-5
Quick Summary
ABB 7BEJMM3312T-5 Pump Motor is a close-coupled, 10 HP, 575 V three-phase motor designed for reliable pump systems in process, HVAC, and industrial fluid handling. Engineers often face integration challenges, heat buildup, and downtime when selecting heavy-duty pump motors; this model is engineered to simplify spec alignment and installation while delivering consistent performance. It carries CSA, CSA EEV, and UR certifications, aligning with premium-efficiency expectations and NEMA design practice to meet rigorous regulatory and energy targets. With stock available across multiple warehouses, you gain faster procurement cycles and reduced lead times, empowering maintenance schedules and project delivery for critical pumping applications. The result is a dependable, compliant motor that supports long-term reliability and lifecycle cost reduction.
Product Information
Extended Description
7BEJMM3312T-5 ABB: Pump Motor 10 Hp 575 V (EJMM3312T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3475RPM,3PH,60HZ,213JM,3728M,O
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3312T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYF696: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3312T-5
Gross Volume
7192.91 in³
Gross Weight
137 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
10HP,3475RPM,3PH,60HZ,213JM,3728M,OPSB,F
Made To Order
No
Medium Description
Close Coupled Pump, 10 HP, 3600 RPM, Frame Size 213Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 575 V, 60 Hz (EJMM3312T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
86 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
137 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.6 A
Rated Efficiency
89.50 %
Rated Speed
3475 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
10 HP, 3600 RPM, Frame Size 213Jm, C-Face, 3 PH, OPSB, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Feature → Business Impact → Application: Close-coupled pump design with 213JM frame and C-face mounting minimizes installation footprint and simplifies alignment, reducing commissioning time and labor costs on new builds or retrofits. This geometry supports compact pump assemblies in space-constrained equipment rooms, allowing easier service access and routine maintenance in water treatment and process lines. Feature → Business Impact → Application: Premium efficiency (89.50%) at 575 V and 60 Hz lowers energy consumption and operational costs, translating to measurable ROI in mass pump installations and continuous-duty operations. This is ideal for process automation, HVAC pumping loops, and chemical processing lines where energy parity matters. Feature → Business Impact → Application: 3-phase, 3475 r/min nominal speed with 3600 r/min synchronous speed provides excellent torque characteristics for start/stop cycling common in duty-cycle pumps, improving pump performance in high-demand applications. Feature → Business Impact → Application: OPSB enclosed housing and 40 °C ambient capability deliver robust protection in manufacturing environments, enabling reliable operation in washdown zones or dusty plant floors without extensive enclosure upgrades. Feature → Business Impact → Application: Foot-mounted, horizontal mounting with a drive-end C-Face flange simplifies retrofits and new installs, enabling straightforward alignment with existing bases, reducing custom fabrication and downtime. Feature → Business Impact → Application: CSA, CSA EEV, UR certifications plus NEMA-aligned design ensure compliance across critical safety and quality standards, supporting audits and supplier qualification programs while minimizing risk in regulated industries. Feature → Business Impact → Application: Stocked at multiple warehouses (US, GB, SG, EGAUT) reduces lead times and accelerates procurement for project linchpins, ensuring uptime in manufacturing plants and critical process lines.
