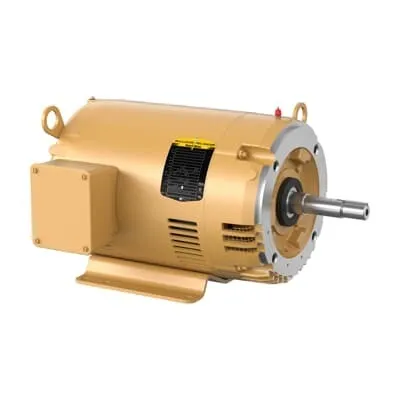

ABB 7BEJMM3313T-G Pump Motor - OPSB Enclosure
Part Number: 7BEJMM3313T-G
Quick Summary
ABB 7BEJMM3313T-G pump motor powers reliable close-coupled pumping in industrial processes. Engineers often wrestle with matching 230/460 V supply, mounting orientation, and protective OPSB enclosure in harsh plant environments. This motor carries CSA EEV and UR certifications, adheres to NEMA design standards, and delivers IE3 premium efficiency for lower life-cycle costs. With its 10 HP rating and compact 215JM frame, it integrates easily with OEM equipment and retrofit projects, driving uptime and predictable performance across facilities. Dual voltage capability and a direct-on-line starting approach simplify installation while maintaining reliability, reducing wiring variants and inventory needs. A scalable solution, it supports procurement across multiple warehouses for project timelines and service continuity.
Product Information
Extended Description
7BEJMM3313T-G ABB: Pump Motor 10 Hp 230 V (EJMM3313T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215JM,3742M,O
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3313T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
37LYM556: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3313T-G
Gross Volume
7192.91 in³
Gross Weight
132 lb
Horsepower Rating UL/CSA
10.000 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
H
Invoice Description
10HP,1770RPM,3PH,60HZ,215JM,3742M,OPSB,F
Made To Order
No
Medium Description
Close Coupled Pump, 10 HP, 1800 RPM, Frame Size 215Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJMM3313T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
82 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
132 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
10 HP, 1800 RPM, Frame Size 215Jm, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: IE3 premium efficiency reduces energy consumption on continuous pumping duties, lowering operating costs and improving sustainability metrics for process and batch operations in manufacturing facilities. Application: OEM pump assemblies and plant-wide pumping systems seeking energy optimization. Feature → Business Impact → Application: OPSB enclosure provides robust protection in demanding environments, minimizing maintenance cycles and extending motor life. Application: Pump installations near conveyors, washdown zones, or outdoor areas with exposure to dust and moisture. Feature → Business Impact → Application: 215JM frame with C-face mounting offers flexible installation, enabling easy integration into compact pump skids and retrofit projects without major layout changes. Application: Close-coupled pump configurations and retrofit upgrades in existing lines. Feature → Business Impact → Application: Direct On Line starting simplifies control schemes, reducing starter hardware and commissioning time. Application: New plant installations and OEM equipment where space and simplicity are priorities. Feature → Business Impact → Application: Dual voltage (230/460 V) and 60 Hz compatibility broadens electrical supply options, enabling standardization across facilities. Application: Global operations and multi-site deployments needing inventory standardization. Feature → Business Impact → Application: CSA/UR certifications and NEMA design compliance provide risk mitigation during audits and procurement. Application: Regulatory-driven projects and compliance-driven spec sheets in process industries.
