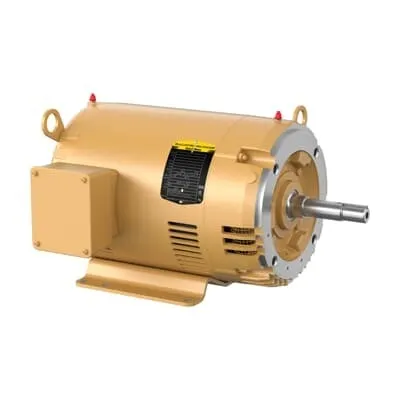

ABB EJMM3314T Pump Motor - OPSB Enclosure, 230/460V
Part Number: 7BEJMM3314T
Quick Summary
ABB EJMM3314T Pump Motor provides a reliable close-coupled pump solution for 3-phase, 60 Hz systems in industrial pumping. When project timelines tighten, stock availability and cross-warehouse compatibility become critical bottlenecks. This model carries CSA, CSA EEV, and UR certifications, aligned with NEMA design practices, ensuring safe and compliant operation in demanding environments. With broad stocking across US and international warehouses and a 0-day lead time, users can deploy quickly, minimize downtime, and accelerate time-to-value. The combination of premium efficiency and a robust OPSB enclosure supports long service life, easier maintenance, and predictable lifecycle costs for many pumping applications.
Product Information
Extended Description
7BEJMM3314T ABB: Pump Motor 15 Hp 230 V (EJMM3314T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,3485RPM,3PH,60HZ,215JM,3734M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3314T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
37LYF784: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3314T
Gross Volume
7561.383 in³
Gross Weight
131 lb
Horsepower Rating UL/CSA
15.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
15HP,3485RPM,3PH,60HZ,215JM,3734M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 15 HP, 3600 RPM, Frame Size 215Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJMM3314T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
88 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
131 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
35.4 A | 17.7 A
Rated Efficiency
90.20 %
Rated Speed
3485 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
15 HP, 3600 RPM, Frame Size 215Jm, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The EJMM3314T delivers 15 HP at 3485 r/min with 230/460 V three-phase power, enabling high torque for reliable close-coupled pumping in demanding environments. This translates to improved system throughput and reduced motor cycling, supporting continuous operation in water transfer and chemical processing lines. Application: ideal for 3-phase pumping tasks requiring quick commissioning and steady performance with minimal downtime. Feature → Business Impact → Application: OPSB enclosure with C-Face drive end flange simplifies installation and protects internal components, reducing field service time and boosting uptime. Application: perfectly suited for horizontal, foot-mounted installations in compact pump skids. Feature → Business Impact → Application: Regreasable lubrication and robust 215JM frame provide long service life and predictable maintenance intervals, lowering total cost of ownership. Application: industrial plants seeking lower maintenance costs and extended motor life. Feature → Business Impact → Application: Direct On Line starting and 60 Min Duty Time enable fast startup with reliable performance under continuous duty, cutting startup delays and enhancing process reliability. Application: HVAC systems, water treatment, and processIndustries that require dependable, hands-off operation. Feature → Business Impact → Application: Premium Efficiency (NEMA 12-12) and 88% power factor improve energy savings and reduce utility spend over the motor’s lifecycle. Application: energy-conscious facilities aiming to lower operating costs while maintaining process performance.
