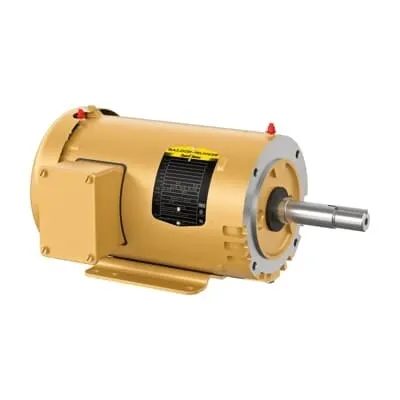

ABB EJMM3555T-G Pump Motor - IE3 Premium Efficiency
Part Number: 7BEJMM3555T-G
Quick Summary
The EJMM3555T-G pump motor is a 2 HP, 230/460 V, 3-phase solution designed for close-coupled pumping in industrial systems. It delivers reliable 60 Hz performance with a TEFC enclosure and a foot-mounted, C-face mounting for straightforward integration. For engineers facing downtime from nonstandard footprints or long lead times, the motor’s US warehouse stock helps minimize project delays. The design aligns with key standards and certifications, including NEMA Design B, IE3 efficiency, and CSA/UR approvals, providing dependable operation in demanding environments. By combining high efficiency with easy installation, this motor supports energy savings and streamlined procurement across water treatment, HVAC, and process industries.
Product Information
Extended Description
7BEJMM3555T-G ABB: Pump Motor 2 Hp 230 V (EJMM3555T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3490RPM,3PH,60HZ,145JM,3526M,TE
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3555T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE1603: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3555T-G
Gross Volume
5274.135 in³
Gross Weight
41 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
2HP,3490RPM,3PH,60HZ,145JM,3526M,TEFC,F1
Made To Order
No
Medium Description
Close Coupled Pump, 2 HP, 3600 RPM, Frame Size 145Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM3555T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
88 %
Product Name
Close Coupled Pump
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
41 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A | 2.5 A
Rated Efficiency
85.50 %
Rated Speed
3490 r/min
Replaced Product ID (OLD)
7B35E1603M774G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
2 HP, 3600 RPM, Frame Size 145Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure protects windings in harsh environments. Business Impact: Improved reliability and reduced maintenance due to controlled temperature and contamination exclusion. Application: Industrial pumping where dust, moisture, or wash-down conditions are common. Feature: IE3 premium efficiency with 2 HP rating. Business Impact: Lower energy costs and reduced operating heat, improving overall plant efficiency. Application: Continuous-duty pump trains in water treatment, cooling loops, and irrigation systems. Feature: Dual voltage 230/460 V with 3-phase operation. Business Impact: Flexible site integration and simpler inventory management, reducing spare parts diversity. Application: Mixed-voltage plants or retrofit projects with varied power networks. Feature: Foot-mounted, C-face mounting with 145JM frame. Business Impact: Easy mechanical alignment and fast installation, minimizing downtime during replacements. Application: Close-coupled pump assemblies and retrofit installations in compact spaces. Feature: Direct On Line starting and 2-pole design (RAM 3490 rpm). Business Impact: Simplified starting sequence and lower control complexity, lowering upfront costs. Application: Standard industrial pumps with minimal soft-start requirements. Feature: Certifications and stock coverage (CSA, CSA EEV, UR; US warehouse availability). Business Impact: Regulatory compliance and assured supply for critical downtime scenarios. Application: Compliance-driven projects in manufacturing and critical facilities; improved procurement lead times with ready-to-ship stock.
