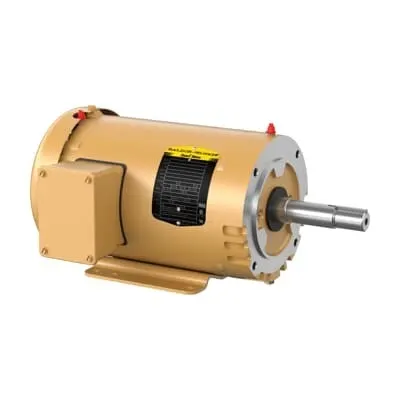

ABB 7BEJMM3558T Pump Motor - 2HP 1760RPM TEFC
Part Number: 7BEJMM3558T
Quick Summary
ABB 7BEJMM3558T Pump Motor is a 2 HP, 1760 RPM, three-phase motor designed for close-coupled pump applications in industrial environments. It delivers reliable power with straightforward integration into existing pump trains, helping minimize downtime and installation complexity. This model is certified for CSA, CSA EEV, and UR, aligning with rigorous safety and compliance expectations. Operating at 230/460 V and 60 Hz with a TEFC enclosure, it supports global sourcing and durable operation in demanding plants. Stocked across multiple warehouses for fast procurement, it offers predictable lead times and a strong total cost of ownership through long-term reliability and efficient performance.
Product Information
Extended Description
7BEJMM3558T ABB: Pump Motor 2 Hp 230 V (EJMM3558T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,143JM,3528M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3558T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYM019: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3558T
Gross Volume
5274.135 in³
Gross Weight
50 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1760RPM,3PH,60HZ,143JM,3528M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 2 HP, 1800 RPM, Frame Size 145Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM3558T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
77 %
Product Name
Close Coupled Pump
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
50 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
86.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: 3-phase, 60 Hz operation with 230/460 V dual voltage. Business Impact: Enables direct connection to standard pump drives and reduces wiring changes, improving start-up reliability. Application: Ideal for general-purpose industrial pump trains in cooling systems and water handling. Feature: TEFC (Totally Enclosed Fan C cooled) enclosure. Business Impact: Protects windings from dust, moisture, and contaminants, reducing maintenance and extending motor life. Application: Suitable for harsh plant air, splash zones, and outdoor installations. Feature: Frame size 145JM with C-Face drive end and foot mounting. Business Impact: Simplifies installation, alignment, and maintenance while enabling compact footprints. Application: Close-coupled pumps with horizontal mounting in space-constrained equipment setups. Feature: Efficiency 86.50% and service factor 1.15. Business Impact: Delivers measurable energy savings and improved uptime under continuous duty. Application: High-demand pump operations in manufacturing and process industries. Feature: NEMA Design B, insulation class F, and regreasable bearings. Business Impact: Balances starting performance with durability and long service life, reducing total cost of ownership. Application: Reputable for continuous duty in pumping systems with robust thermal management.
Get a Quick Quote for a ABB 7BEJMM3558T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM3558T?
Enquire Now
FAQs
Yes. The ABB 7BEJMM3558T is rated for 230/460 V, 60 Hz, three-phase operation and is designed for direct-on-line starting in standard pump applications. It supports common industry voltage configurations to simplify integration into existing electrical systems.
The motor uses a 145JM frame with a C-Face drive-end flange and foot-mounted configuration. Horizontal mounting orientation and 145JM frame size simplify alignment with close-coupled pumps, reducing installation time and improving pump efficiency in compact spaces.
This motor is certified for CSA, CSA EEV, and UR, reflecting compliance with safety and reliability standards for industrial equipment. It also aligns with NEMA Design B, insulation class F, and premium efficiency guidelines, supporting deployment in regulated manufacturing environments.
Key metrics include 2 HP output, 1760 r/min nominal speed, 86.5% efficiency, service factor 1.15, and a rated current of 5.6 A (2.8 A per phase practical). It uses a TEFC enclosure and has a shaft diameter of 0.88 in, making it suitable for continuous-duty pump applications.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses (US and international). This enables rapid fulfillment for OEMs and maintenance teams seeking fast procurement and reduced project lead times.
