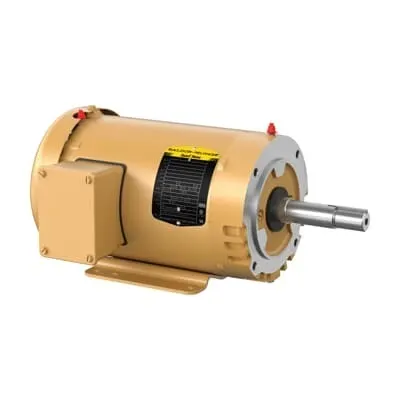

ABB EJMM3559T Pump Motor - 3HP, 60Hz, TEFC IE3
Part Number: 7BEJMM3559T
Quick Summary
ABB EJMM3559T pump motor delivers reliable torque for close-coupled pump applications in HVAC and light industrial systems. Engineers often grapple with tight space, energy costs, and downtime, so a compact, efficient solution is essential. This model carries CSA, CSA EEV, and UR certifications and achieves IE3 premium efficiency, paired with a TEFC enclosure to withstand harsh environments. Rated at 3 HP with 230/460 V, 60 Hz, 3-phase operation, and a robust 143JM frame, it offers straightforward installation and dependable service. Global stock and zero-day lead times support rapid procurement, helping you meet project timelines while reducing operating expenses and maintenance interruptions.
Product Information
Extended Description
7BEJMM3559T ABB: Pump Motor 3 Hp 230 V (EJMM3559T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,3532M,N
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3559T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYT921: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3559T
Gross Volume
3590.443 in³
Gross Weight
54 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,3532M,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 3 HP, 3600 RPM, Frame Size 143Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM3559T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
Close Coupled Pump
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
54 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35T921Q060G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 143Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: 3 HP, 230/460 V, 60 Hz, 3-phase operation with a 143JM frame. → Business Impact: Delivers consistent torque and compatibility with standard power infrastructure, enabling predictable pump performance and simplified electrical design. → Application: Ideal for close-coupled pump assemblies in water transfer and HVAC cooling loops. Long-tail keywords: 3HP motor, 230/460V, three-phase motor. Feature: TEFC enclosure with a C-Face drive end flange and foot-mounted base. → Business Impact: Provides robust protection against dust, moisture, and contaminants while simplifying alignment and mounting. → Application: Suitable for rugged plant floors and compact machinery enclosures. Long-tail keywords: TEFC motor, C-Face, foot-mounted motor. Feature: IE3 Premium Efficiency rating and Class F insulation. → Business Impact: Reduces energy consumption and supports regulatory compliance, lowering operating costs over the motor’s life. → Application: Continuous-duty pumping applications in process cooling and water handling. Long-tail keywords: IE3 premium efficiency, insulation class F. Feature: Direct On Line starting with NEMA Design B, 3600 r/min synchronous speed. → Business Impact: Simplifies startup and reduces control complexity, improving uptime and ease of integration with existing VFDs or hard-start protections. → Application: Standard pump installations in industrial facilities. Long-tail keywords: Direct On Line, NEMA Design B. Feature: Durable bearings (6206 Ball, 6203 Ball) and shaft diameter 0.88 in. → Business Impact: Enhances reliability and life expectancy in continuous-duty pumping, lowering maintenance cycles. → Application: Long-lasting drive train for water transfer and lubrication systems. Long-tail keywords: Ball bearings 6206/6203, shaft diameter. Feature: 230/460 V, 3-phase voltage code L with 7.2 A / 3.6 A rated current. → Business Impact: Flexible electrical design and easier panel sizing, reducing installation complexity and wiring costs. → Application: Retrofit and new builds with varying supply voltages. Long-tail keywords: voltage rating 230/460V, rated current.
