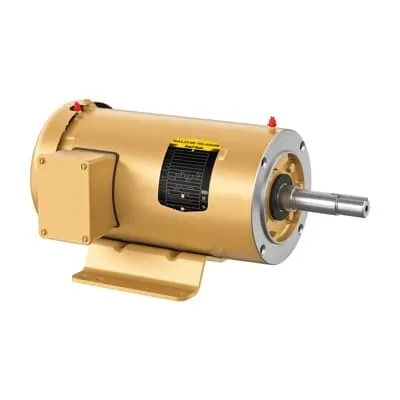

ABB 7BEJMM3610T Pump Motor - IE3 Premium Efficiency
Part Number: 7BEJMM3610T
Quick Summary
Pump motor ABB 7BEJMM3610T delivers reliable 3 HP performance for close-coupled pumps in process and water handling. This motor helps reduce downtime and energy waste, supporting continuous operation in demanding industrial environments. Engineered to meet IE3 premium efficiency, CSA and UR certifications, it helps facilities stay compliant while improving safety and reliability. With a TEFC enclosure and a rugged C-Face drive end, installation is straightforward into standard pump assemblies, accelerating retrofit projects. Stocked across multiple warehouses and available in 230/460 V varieties, it enables faster procurement and a lower total cost of ownership for OEMs and service teams.
Product Information
Extended Description
7BEJMM3610T ABB: Pump Motor 3 Hp 230 V (EJMM3610T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,182JM,3532M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3610T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYM205: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3610T
Gross Volume
3590.443 in³
Gross Weight
56 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,182JM,3532M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 3 HP, 3600 RPM, Frame Size 182Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM3610T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
Close Coupled Pump
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
56 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35M205Q060G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 182Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
230 V | 460 V
IE3 Premium Efficiency reduces energy consumption and operating costs in pump systems, improving overall plant profitability and helping meet regulatory requirements for energy efficiency in industrial motors. This translates to measurable savings on utility bills and reduced heat load in equipment rooms, especially for continuous-duty applications such as water handling and process pumping. The TEFC enclosure and 3-phase, 60 Hz operation provide a rugged, maintenance-friendly solution that can withstand harsh environments while keeping ingress protection at a practical level for typical pump rooms. Direct On Line starting simplifies electrical integration and minimizes upfront hardware costs, shortening commissioning time and reducing project risk in new builds or retrofits. The 182JM frame size with C-Face drive end flange enables straightforward mounting and interchangeability with standard pump assemblies, lowering installation time and spare-parts inventory. Foot-mounted, single-speed construction supports reliable, low-maintenance operation with predictable performance curves. At 7.2 A (nominal) and 3.6 A (startup/protected), the motor supports predictable current draw, aiding electrical coordination and fuse sizing. Lubrication is listed as Regreasable, contributing to extended bearing life and reduced maintenance intervals. Overall, this motor provides a robust, globally compatible solution for 3 HP pump applications requiring solid efficiency, durability, and ease of service.
Get a Quick Quote for a ABB 7BEJMM3610T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM3610T?
Enquire Now
FAQs
The motor uses a C-Face drive end with a foot-mounted installation footprint (Frame 182JM), designed for standard close-coupled pump assemblies. This compatibility allows quick retrofits into existing pump stations and OEM equipment without extensive rework. The horizontal mounting and 1.15 service factor ensure reliable performance under continuous-duty conditions typical in water transfer and process pumping.
The 7BEJMM3610T is a 3-phase, 60 Hz motor rated at 3 HP with dual voltage 230V / 460V. It delivers a nominal current of 7.2 A with a service factor of 1.15 and an efficiency aligned to IE3 Premium standards. Direct On Line starting is supported, which simplifies electrical design and reduces soft-start requirements for many pump applications.
Yes. The TEFC enclosure and robust frame design (182JM) are well-suited for pump installations in water treatment, process cooling, and close-coupled pumping in industrial settings. With 60 Hz operation, 3-phase power, and a reliable 3600 r/min synchronous speed, it provides steady performance for continuous-duty applications with predictable torque and pump head characteristics.
The motor carries CSA, CSA EEV, and UR certifications, supporting compliance within North American markets. It also aligns with IE3 efficiency requirements and features a NEMA-compliant TEFC enclosure, delivering a robust, safe solution for industrial environments and maintenance teams seeking standards-driven performance.
By combining IE3 premium efficiency with a regreasable bearing design and a durable TEFC enclosure, the motor lowers energy use and extends bearing life, reducing maintenance intervals. Its stock availability and simple DOL startup shorten project lead times and commissioning, delivering faster time-to-operate and lower total cost of ownership for OEMs and service teams.
