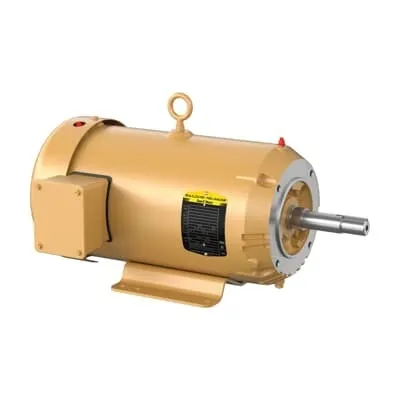

ABB 7BEJMM3610T-5 Pump Motor - CSA/UR Certified
Part Number: 7BEJMM3610T-5
Quick Summary
ABB 7BEJMM3610T-5 Pump Motor delivers reliable 3 HP performance for close-coupled pump systems across industrial fluid handling. Facilities and operators need motors that minimize energize-start wear, reduce downtime, and ship quickly from US warehouses. This model meets CSA, CSA EEV, and UR certifications, along with IE3 premium efficiency and a TEFC enclosure, to support compliance and long-term reliability. With 575 V 3-phase operation at 60 Hz and a rugged 182JM frame, it provides seamless integration with existing controls and drive systems, delivering predictable ROI. This combination supports troubleshooting, spare-part availability, and consistent performance across US and international sites. For engineers, it means faster procurement and smoother maintenance planning.
Product Information
Extended Description
7BEJMM3610T-5 ABB: Pump Motor 3 Hp 575 V (EJMM3610T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,182JM,3622M,TE
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3610T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYH017: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3610T-5
Gross Volume
5274.135 in³
Gross Weight
63 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,182JM,3622M,TEFC,F1
Made To Order
No
Medium Description
Close Coupled Pump, 3 HP, 3600 RPM, Frame Size 182Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (EJMM3610T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
91 %
Product Name
Close Coupled Pump
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
63 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.9 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 182Jm, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Feature → Business Impact → Application: TEFC enclosure protects windings from dust and moisture, reducing unplanned downtime and extending motor life in harsh industrial environments; ideal for dusty fabrication plants and outdoor pump installations. Feature → Business Impact → Application: 3 HP, 575 V, 3-phase, 60 Hz compatibility aligns with common plant electrical distributions, enabling straightforward retrofits and plug-and-play integration with existing VFDs or direct-on-line starts. Feature → Business Impact → Application: IE3 Premium efficiency with a 0.91 power factor lowers operating costs and improves power quality for continuous pump service in process lines and HVAC systems. Feature → Business Impact → Application: 182JM frame with foot-mount design simplifies mounting routines and correlates with standard motor bases, reducing installation time and alignment risks in retrofit projects. Feature → Business Impact → Application: Direct On Line starting minimizes control complexity and footprint in compact pump assemblies, while signaling the need for careful inrush management in sensitive electrical rooms. Feature → Business Impact → Application: Stocked At Multiple Warehouses with 0-day lead time improves maintenance planning, enables rapid replacements, and supports lean inventory strategies for water treatment and industrial fluid handling. Long-tail keywords such as “575 V motor,” “close-coupled pump motor,” “IE3 premium efficiency,” “foot-mounted 182JM motor,” and “NEMA design B” are integrated to reflect real-world procurement conversations and industry expectations.
