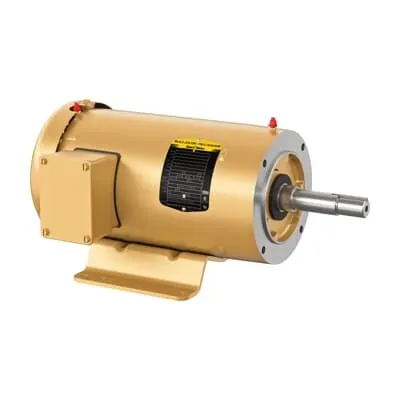

ABB 7BEJMM3610T-G Pump Motor - 3HP 230/460V IE3
Part Number: 7BEJMM3610T-G
Quick Summary
ABB 7BEJMM3610T-G is a pump motor for close-coupled pumping in industrial and process environments. It delivers 3 HP at 60 Hz with dual voltage options (230 V / 460 V) and a TEFC enclosure designed for challenging conditions. For engineers and buyers, uptime and energy efficiency are critical; this motor combines premium IE3 efficiency with robust construction to minimize operating costs and maintenance. Certified by CSA, CSA EEV, and UR, it aligns with NEMA design B standards and a frame size of 182JM, ensuring compatibility with common motor controls. The result is a reliable, easy-to-integrate solution that supports fast procurement and predictable performance in pump and HVAC systems.
Product Information
Extended Description
7BEJMM3610T-G ABB: Pump Motor 3 Hp 230 V (EJMM3610T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,182JM,3532M,TE
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3610T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYZ952: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3610T-G
Gross Volume
3590.443 in³
Gross Weight
60 lb
Horsepower Rating UL/CSA
3.000 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
H
Invoice Description
3HP,3450RPM,3PH,60HZ,182JM,3532M,TEFC,F1
Made To Order
No
Medium Description
Close Coupled Pump, 3 HP, 3600 RPM, Frame Size 182Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM3610T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
Close Coupled Pump
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
60 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35Z952Q060G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
3 HP, 3600 RPM, Frame Size 182Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature: Dual-voltage input (230 V / 460 V) enables global applicability. Business Impact: reduces spare-parts inventory and simplifies international projects. Application: suitable for cross-border pumping installations in water handling and process systems. Feature: TEFC enclosure with 182JM frame and C-Face drive end flange type. Business Impact: durable protection against dust, moisture, and contaminants, extending bearing life. Application: rugged pump setups in manufacturing rooms and outdoor equipment pits. Feature: IE3 Premium Efficiency rating. Business Impact: lowers energy consumption and operating costs over the motor’s life cycle. Application: continuous-duty pumping in climate control and water transfer applications. Feature: 3-phase, 60 Hz operation with Direct On Line starting. Business Impact: easy integration with standard VFDs or mains, reducing installation complexity and control costs. Application: HVAC pumps and process-water systems demanding quick startups. Feature: Frame size 182JM, shaft Ø0.88 in, and 0.92 PF with a 1.15 service factor. Business Impact: predictable torque delivery and system compatibility with existing shafts and couplings. Application: heavy-load pump loops requiring reliable performance and spare parts compatibility.
Get a Quick Quote for a ABB 7BEJMM3610T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM3610T-G?
Enquire Now
FAQs
Yes. The model is designed for a 182JM frame with foot mounting and C-Face drive end flange, supporting 3-phase, 60 Hz operation. It offers dual-voltage (230 V / 460 V) input and Direct On Line starting, enabling straightforward swap-ins for standard Baldor pump assemblies with minimal rework. Stock is available in multiple warehouses to shorten downtime.
Key specs include 3 HP, 60 Hz, dual voltage 230 V / 460 V, 3-phase operation, and an IE3 Premium Efficiency rating. Insulation class is H, service factor 1.15, and PF about 92%. Drive-end features include a C-Face flange and foot-mounted base, with a shaft diameter of 0.88 inches for compatible couplings.
Yes. It is rated for Continuous duty (Duty Time: 60 Min) and designed for reliable, long-life operation in pump loops. The TEFC enclosure protects against contaminants, and the design aligns with NEMA design B standards, supporting steady torque and safe operation in demanding environments.
The motor carries CSA, CSA EEV, and UR certifications, meets IE3 premium efficiency, and adheres to NEMA design standards. It is RoHS compliant and suitable for applications requiring rigorous safety and regulatory conformity in North American and international markets.
Warranty terms indicate that products under warranty must be returned. Lead time is listed as 0 day, and stock is held at multiple warehouses (including US and Asia), enabling rapid fulfillment and minimized downtime for critical projects.
