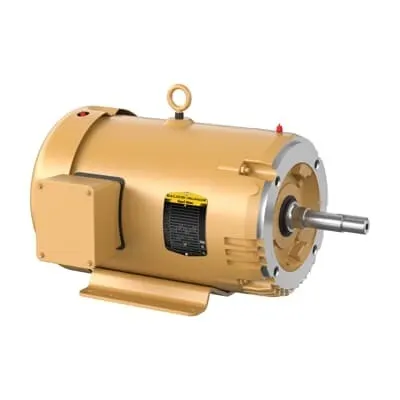

ABB EJMM3714T Pump Motor - IE3 Premium Efficiency
Part Number: 7BEJMM3714T
Quick Summary
The ABB EJMM3714T Pump Motor is a 10 HP, 3-phase solution designed for close-coupled pump systems in industrial facilities. If you’re facing downtime and rising energy costs, this motor targets those pain points with reliable performance and straightforward maintenance. It carries CSA, CSA EEV, and UR certifications, combines a TEFC enclosure with 60 Hz operation, and uses a 215JM frame for robust mounting. Together with its IE3 premium efficiency rating and compatibility with 230/460 V supplies, it supports fast procurement and a lower total cost of ownership across pumping applications.
Product Information
Extended Description
7BEJMM3714T ABB: Pump Motor 10 Hp 230 V (EJMM3714T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215JM,3752M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3714T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYM031: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3714T
Gross Volume
7561.383 in³
Gross Weight
165 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215JM,3752M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 10 HP, 1800 RPM, Frame Size 215Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM3714T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
165 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
10 HP, 1800 RPM, Frame Size 215Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature: Close-Coupled design with 215JM frame and C-Face mounting. Benefit: Reduces installation footprint and misalignment risk, enabling quicker retrofits in space-constrained pump rooms. Application: Ideal for compact industrial pumps where footprint matters. Feature: IE3 Premium Efficiency with 10 HP at 1770 r/min. Benefit: Delivers lower energy consumption and operating costs over long runtimes, supporting sustainability goals. Application: Suitable for continuous-duty pumping in manufacturing and processing lines. Feature: TEFC enclosure, 3PH, 60 Hz, 230/460 V, Foot Mounted with Horizontal orientation (F1). Benefit: Enhanced protection in dusty or humid environments and straightforward integration with standard drive systems. Application: Pumps in plant floors, HVAC, and water handling. Feature: Regreasable bearings (6309/JM 6206) and 1.15 service factor. Benefit: Longer bearing life and improved reliability under varying load conditions, reducing maintenance and replacements. Application: High-duty cycle pumping where uptime is critical. Feature: Direct On Line starting and NEMA design compatibility with CE/NEMA standards. Benefit: Simplified commissioning and compatibility with common control schemes, lowering startup costs. Application: New installations and retrofits across municipal, industrial, and process facilities. Feature: Certifications and stocking support (CSA, CSA EEV, UR; stock in multiple warehouses). Benefit: Compliance assurance and fast delivery for project timelines, minimizing downtime. Application: Global manufacturing environments requiring certified motors and rapid deployment.
