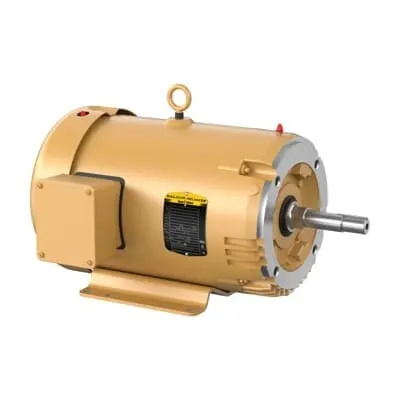

ABB 7BEJMM3714T-5 Pump Motor - 575V IE3, 10HP
Part Number: 7BEJMM3714T-5
Quick Summary
ABB 7BEJMM3714T-5 pump motor delivers 10 HP at 575 V for close-coupled pump systems. Industries face downtime from motor overheating and mismatched drives; this unit's TEFC enclosure and rugged bearings help minimize those risks. It carries CSA EEV and UR listings and follows NEMA-based design practices to support field service and compliance. With 60 Hz operation, a 1770 rpm profile, and IE3 efficiency, it trims energy costs while delivering steady torque. This combination supports reliable pumping in water treatment, irrigation, and industrial process applications, helping maintenance teams meet uptime targets and reduce total cost of ownership.
Product Information
Extended Description
7BEJMM3714T-5 ABB: Pump Motor 10 Hp 575 V (EJMM3714T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215JM,3752M,T
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3714T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYJ786: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3714T-5
Gross Volume
7561.383 in³
Gross Weight
165 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215JM,3752M,TEFC,F
Made To Order
No
Medium Description
Close Coupled Pump, 10 HP, 1800 RPM, Frame Size 215Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (EJMM3714T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
165 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.6 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
10 HP, 1800 RPM, Frame Size 215Jm, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Feature → TEFC enclosure provides protection against dust, moisture, and oils, reducing unscheduled maintenance and extending motor life. Business Impact → Longer maintenance intervals and lower operating costs in harsh environments translate to higher uptime in pumping stations and chemical processing plants. Application → Suitable for outdoor or washdown areas where reliability is critical, such as water treatment and irrigation systems. Feature → Close-coupled pump design with 215JM frame and C-Face mounting offers straightforward alignment and compact footprint. Business Impact → Simplified installation, reduced configuration time, and easier retrofits in space-constrained pump rooms. Application → Ideal for retrofit projects and new skid-mounted pump assemblies in manufacturing lines. Feature → IE3 Premium Efficiency and 10 HP rating at 575 V, 60 Hz, 3-phase lowers energy consumption and operational costs. Business Impact → Noticeable energy savings, lower heat generation, and improved return on investment. Application → Best fit for continuous-duty pumping in process industries and water management. Feature → Direct On Line starting for simple Start/Stop control with minimal external equipment. Business Impact → Reduced capital expenditure on soft starters and simplified electrical architecture. Application → Common in OEM pump skids and inline pumping systems. Feature → Robust mechanicals: 4-pole design, 1.15 service factor, shaft diameter 0.88 in, bearings 6309/6206, insulation class F. Business Impact → Predictable torque, reliable startup under load, and extended motor life in demanding applications. Application → Suitable for high-tidelity pump drives and continuous-duty service. Feature → NEMA-based design, TEFC enclosure, and 60 Hz operation deliver compatibility with standard industrial power systems. Business Impact → Ease of procurement, universal couplings, and verified field performance. Application → Fits standard plant floors and pump packages across sectors such as food & beverage, chemical processing, and water utility systems.
Get a Quick Quote for a ABB 7BEJMM3714T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM3714T-5?
Enquire Now
FAQs
Yes. This pump motor is a 3-phase unit designed for 575 V operation and features a TEFC (Totally Enclosed Fan-Can) enclosure, which provides protection against dust and moisture while fitting standard 575 V electrical architectures found in many industrial plants.
Key specs include a rated current of 9.6 A, rated speed of 1770 r/min (synchronous 1800 r/min), and an efficiency of 91.70% (IE3). It is a 4-pole, 60 Hz, 10 HP motor with a service factor of 1.15 and a direct-on-line starting capability.
Absolutely. The motor’s close-coupled 215JM frame, C-face mounting, and foot-mounted base make it ideal for compact pump packages. With a continuous-duty rating, 60 Hz operation, and IE3 efficiency, it’s well-suited for water treatment, irrigation, and process pumping where steady torque and uptime are critical.
The model carries CSA EEV and UR certifications, along with NEMA-design considerations. These approvals support electrical safety, conformance to industry standards, and smoother commissioning in North American facilities.
Higher efficiency (IE3) reduces energy costs, while TEFC protection minimizes maintenance due to environmental exposure. The rugged bearings and insulation (Class F) extend service life, lowering total cost of ownership and improving uptime in continuous pumping operations.
