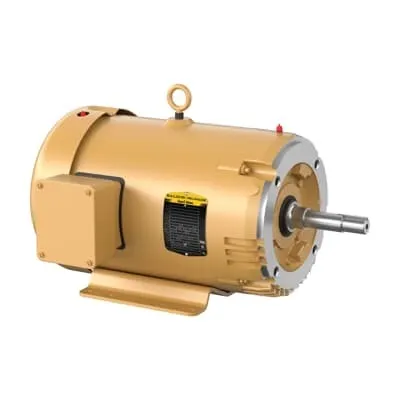

ABB 7BEJMM3714T-G Pump Motor - CSA EEV UR Certified
Part Number: 7BEJMM3714T-G
Quick Summary
7BEJMM3714T-G is a 10 HP pump motor for close-coupled pumps used in 230/460 V, 60 Hz industrial fluid handling. It delivers reliable, compact performance suitable for tight spaces and fast installation. Engineers often face downtime from mismatched frames or complex mounting; this unit addresses that with a foot-mounted, C-face design and broad warehouse stock for quick fulfillment. With CSA, CSA EEV, and UR certifications, it meets essential safety and regulatory requirements for global facilities. The combination of premium efficiency, TEFC enclosure, and robust mechanicals supports lower operating costs and predictable maintenance in demanding environments.
Product Information
Extended Description
7BEJMM3714T-G ABB: Pump Motor 10 Hp 230 V (EJMM3714T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215JM,3752M,T
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3714T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYK496: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3714T-G
Gross Volume
7561.383 in³
Gross Weight
165 lb
Horsepower Rating UL/CSA
10.000 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
H
Invoice Description
10HP,1770RPM,3PH,60HZ,215JM,3752M,TEFC,F
Made To Order
No
Medium Description
Close Coupled Pump, 10 HP, 1800 RPM, Frame Size 215Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM3714T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
165 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
10 HP, 1800 RPM, Frame Size 215Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature: 10 HP, 1770 r/min, 3-phase, 60 Hz operation. Business Impact: Delivers consistent pumping performance with predictable torque and flow, reducing process variability. Application: Ideal for close-coupled pump assemblies in water handling and HVAC systems. Feature: TEFC enclosure with 215JM frame, foot-mounted/C-face design. Business Impact: Enhanced protection against dirt, dust, and incidental exposure, enabling longer service life and easier installation. Application: Suitable for rugged industrial environments and space-constrained installations. Feature: Dual voltage capability (230 V / 460 V). Business Impact: Simplifies procurement and enables flexible field wiring without transformer upgrades. Application: Fits a wide range of pump configurations across facilities. Feature: Premium efficiency and NEMA A design. Business Impact: Lowers energy consumption and running costs in continuous-duty operations. Application: Process cooling, irrigation, and transfer pumping. Feature: Certifications (CSA, CSA EEV, UR). Business Impact: Supports regulatory compliance and safer procurement for regulated industries. Application: Critical for facilities requiring strict safety and performance standards. Feature: Shaft grounding and 0.88 in shaft diameter with 1.15 service factor. Business Impact: Improves reliability under start/stop cycles and overload tolerance, reducing maintenance and downtime. Application: Heavy-use pumping with variable load profiles.
