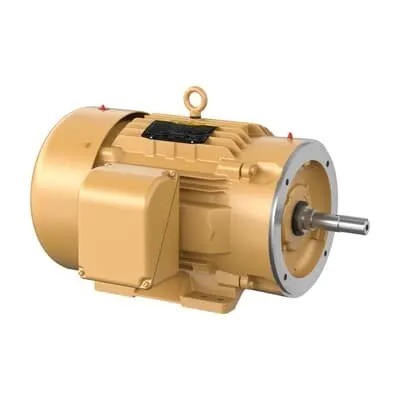

ABB 7BEJMM4104T-G Pump Motor - IE3 Premium Efficiency
Part Number: 7BEJMM4104T-G
Quick Summary
The 7BEJMM4104T-G pump motor is a 30 HP, close-coupled pump motor designed for reliable industrial pumping applications. It helps engineers address energy costs and downtime by delivering efficient, robust performance in demanding environments. This motor carries key certifications and standards, including NEMA compliance and CSA/UR approvals, with CSA EEV certification for additional safety validation. With dual voltage operation (230/460 V) and a TEFC enclosure, it supports flexible procurement and installation across varied facilities, from water treatment to process cooling. By combining high efficiency with straightforward integration, it delivers measurable business value through reduced energy use, easier maintenance, and faster downtime recovery in critical pumping applications.
Product Information
Extended Description
7BEJMM4104T-G ABB: Pump Motor 30 Hp 230 V (EJMM4104T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
56M 4P TEFC HOR 286JM SE
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM4104T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
10LYH520: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
EJMM4104T-G
Gross Volume
14448.906 in³
Gross Weight
437 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
56M 4P TEFC HOR 286JM SE
Made To Order
No
Medium Description
Close Coupled Pump, 30 HP, 1800 RPM, Frame Size 286Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM4104T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
80 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
437 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
76 A | 38 A
Rated Efficiency
93.60 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.25 in
Shaft Grounding
Shaft Grounding
Short Description
30 HP, 1800 RPM, Frame Size 286Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: IE3 Premium Efficiency reduces energy consumption and operating costs, especially in continuous pump duty and large-scale fluid handling. This aligns with facilities seeking long-term cost savings on electric motor-driven pumps in water systems, HVAC loops, or chemical processing lines. Feature → 230/460 V dual voltage capability simplifies procurement and reduces stock complexity, enabling a single motor to cover multiple plant voltages and easing electrical room planning. This is particularly advantageous for multinational facilities or retrofit projects where voltage availability varies. Feature → TEFC enclosure with C-Face and foot mounting provides rugged protection in dusty or wet environments while enabling fast, vibration-resistant installation. Applications include close-coupled pump assemblies in industrial plants and food and beverage processing lines where enclosure integrity matters. Feature → Frame 286JM, shaft 1.25 in, and 1.15 service factor deliver robust start-up torque and reliability under transient loads, supporting longer intervals between maintenance and reduced downtime. This is critical for high-inertia pumping tasks in cooling towers, water transfer, and process water loops. Feature → Direct On Line starting and NEMA design A baseline, paired with a 60 Hz, 1760 r/min operating speed, offers straightforward control and predictable performance for standard pump applications, minimizing control hardware and start-up costs. Applications include HVAC pumps, irrigation circuits, and manufacturing fluid handling where simplicity and reliability are valued. Feature → Stocked at multiple warehouses and 30 HP, 3-phase operation with 230/460 V supports rapid deployment and scalable maintenance planning, reducing total cost of ownership during project rollouts and shutdown windows.
