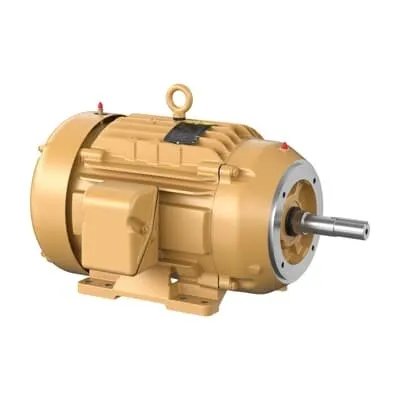

ABB EJMM4106T Pump Motor - 20HP TEFC IE3, 3PH 60Hz
Part Number: 7BEJMM4106T
Quick Summary
Pump motor solutions like the ABB EJMM4106T deliver 20 HP of reliable power for close-coupled pump assemblies used in water treatment, industrial processing, and general plant services. If you’re battling downtime, energy waste, or mismatched voltage layouts, this motor provides a straightforward 230/460 V, 60 Hz, 3-phase solution built for rugged environments. It carries IE3 premium efficiency, a TEFC enclosure, and certifications from CSA, CSA EEV, and UR, helping you meet energy and safety requirements. The foot-mounted, horizontal setup with a C-face drive end flange simplifies installation and reduces misalignment risk, while the 256JM frame supports common spare parts and fast replacement. In short, EJMM4106T combines performance, reliability, and lifecycle value for OEMs and maintenance teams.
Product Information
Extended Description
7BEJMM4106T ABB: Pump Motor 20 Hp 230 V (EJMM4106T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3520RPM,3PH,60HZ,256JM,0936M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM4106T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
09LYP014: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
EJMM4106T
Gross Volume
14448.906 in³
Gross Weight
281 lb
Horsepower Rating UL/CSA
20.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
20HP,3520RPM,3PH,60HZ,256JM,0936M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 20 HP, 3600 RPM, Frame Size 256Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM4106T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
89 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
281 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
46 A | 23 A
Rated Efficiency
91 %
Rated Speed
3520 r/min
Replaced Product ID (OLD)
7B09-0000-2957
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
20 HP, 3600 RPM, Frame Size 256Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → 1: Premium IE3 efficiency and direct-on-line capability reduce energy costs in continuous pumping. Business Impact → Lower operating expense and improved energy intensity for fluid handling processes. Application → Water treatment, chemical processing, and general plant pumping where energy efficiency is critical. Application → The combination of 230/460 V and 60 Hz facilitates seamless integration with common plant electrical systems. Feature → TEFC enclosure and rugged 256JM frame protect the motor in harsh environments. Business Impact → Higher uptime, reduced maintenance, and longer service life in demanding facilities. Application → Outdoor or corrosive environments, chemical processing lines, and wastewater facilities. Feature → Foot-mounted, horizontal mounting with C-face drive end flange simplifies installation and alignment. Business Impact → Faster commissioning, easier retrofit, and lower installation costs. Application → Retrofit projects and new builds using standard 256JM/pump-motor interfaces. Feature → Regreasable lubrication and robust bearing set (6309 Ball / 6208 Ball) support maintenance planning. Business Impact → Lower lubrication costs and extended bearing life with proactive maintenance. Application → Medium-duty continuous duty pumps in industrial plants. Feature → Direct On Line starting with a 1.15 service factor provides reliable startup and consistent performance under load. Business Impact → Reduced soft-start equipment needs and predictable pump start behavior. Application → Systems requiring immediate torque delivery without complex drive electronics, while maintaining protection margins. Feature → 20 HP, 3520 r/min rated speed with 89% PF and 91% efficiency improves process control and energy use. Business Impact → Higher process efficiency and cost savings over motor life. Application → High-demand pumping loops in water/wastewater, food processing, and process industries.
