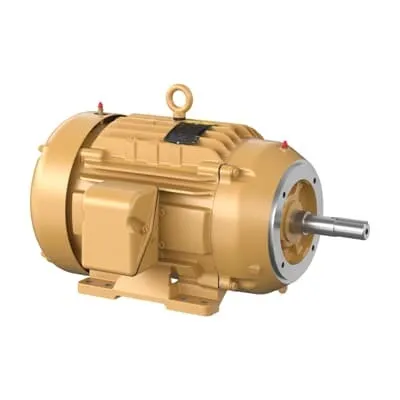

ABB EJMM4106T-G Pump Motor - 20 HP, CSA/UR Certified
Part Number: 7BEJMM4106T-G
Quick Summary
Pump motor ABB EJMM4106T-G provides 20 HP power for close-coupled pumps in industrial pumping systems. This design targets uptime and energy efficiency to minimize unplanned downtime and operating costs. It carries CSA, CSA EEV, and UR certifications, ensuring electrical safety, reliability, and compliance across North American and international projects. Built for 60 Hz, 3-phase power with TEFC enclosure and a 256JM frame, it combines rugged construction with easy installation. For procurement teams, this motor offers ready availability, precise lead times, and consistent performance in demanding environments, helping you meet maintenance schedules and service-level agreements while reducing total cost of ownership.
Product Information
Extended Description
7BEJMM4106T-G ABB: Pump Motor 20 Hp 230 V (EJMM4106T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3520RPM,3PH,60HZ,256JM,0936M,T
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM4106T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
09LYJ657
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
EJMM4106T-G
Gross Volume
14448.906 in³
Gross Weight
274 lb
Horsepower Rating UL/CSA
20.000 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
H
Invoice Description
20HP,3520RPM,3PH,60HZ,256JM,0936M,TEFC,F
Made To Order
No
Medium Description
Close Coupled Pump, 20 HP, 3600 RPM, Frame Size 256Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM4106T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
89 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
274 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
46 A | 23 A
Rated Efficiency
91 %
Rated Speed
3520 r/min
Replaced Product ID (OLD)
7B09-0000-2897
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
20 HP, 3600 RPM, Frame Size 256Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 20 HP, 3-phase design is tailored to drive close-coupled pumps with consistent torque and reliable startup, enabling stable flow in process and water treatment applications. Application: industrial pumping systems in utilities and manufacturing benefit from predictable performance and reduced operator intervention. Feature → Business Impact → Application: TEFC enclosure protects windings and bearings in dusty, humid, or wash-down environments, lowering maintenance needs and extending motor life. Application: wastewater treatment, chemical processing, and outdoor setups gain rugged reliability with lower total cost of ownership. Feature → Business Impact → Application: Premium Efficiency (approximately 91% efficiency) and a 1.15 service factor reduce operating costs and improve electrical system stability, supporting cost-efficient energy management across multi-motor networks. Application: large-scale pumping trains and municipal facilities. Feature → Business Impact → Application: Direct-On-Line (DOL) starting simplifies control architecture and reduces startup complexity, decreasing upfront capital exposure and enabling rapid commissioning. Application: retrofit projects and emergency rerouting where quick uptime matters. Feature → Business Impact → Application: Stocked-at-warehouses with zero-day lead times improves MTTR (mean time to repair) and maintenance planning. Application: field service, remote sites, and critical process lines needing fast maintenance. Feature → Business Impact → Application: 60 Hz operation with 3600 rpm synchronous speed ensures compatibility with standard industrial power grids and process speeds, reducing mechanical mismatch. Application: general purpose pump stations, HVAC water pumps, and irrigation systems.
