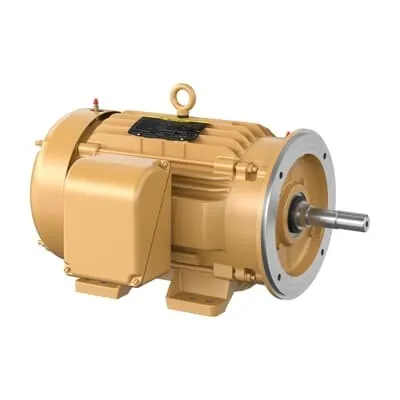

ABB 7BEJMM4107T-G Pump Motor - Premium Efficiency
Part Number: 7BEJMM4107T-G
Quick Summary
Pump motor 7BEJMM4107T-G from ABB delivers reliable 25 HP performance for close-coupled pumping systems. In demanding industrial environments, downtime and energy waste can erode margins, so customers need a motor that combines robust protection, precise speed control, and simple installation. This model carries CSA, UR, and CSA EEV certifications, plus a NEMA Design Code A and TEFC enclosure that are well suited to US/Canadian electrical standards in 60 Hz, 230/460 V, three-phase service. With a compact footprint, foot-mounted horizontal mounting, and a frame size of 284JM, it aligns with retrofit projects and new builds alike. Leveraging premium efficiency and strong stock availability helps improve total cost of ownership and project timelines.
Product Information
Extended Description
7BEJMM4107T-G ABB: Pump Motor 25 Hp 230 V (EJMM4107T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
44M 2P TEFC HOR 284JM SE
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM4107T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
09LYL348: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
EJMM4107T-G
Gross Volume
14448.906 in³
Gross Weight
265 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
44M 2P TEFC HOR 284JM SE
Made To Order
No
Medium Description
Close Coupled Pump, 25 HP, 3600 RPM, Frame Size 284Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM4107T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
88 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
265 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
58 A | 29 A
Rated Efficiency
91.70 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.25 in
Shaft Grounding
Shaft Grounding
Short Description
25 HP, 3600 RPM, Frame Size 284Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature: Close-coupled pump design with 25 HP output, 3600 rpm rating, 284JM frame, C-face mounting, and 230/460 V, 3-phase operation. Business Impact: Delivers compact, space-efficient installation with straightforward alignment and reduced coupling requirements, lowering installation labor and misalignment risk. Application: Ideal for close-coupled pumping in process water, cooling loops, or general industrial circulation. The long-term benefit is faster commissioning and easier maintenance in tight plant layouts. Feature: TEFC enclosure and iron frame material providing robust protection in harsh environments. Business Impact: Enhances reliability in dusty or humid facilities while meeting NEMA and IP considerations for industrial motors. Application: Suitable for outdoor or semi-enclosed mechanical rooms where contamination risk is present, reducing unplanned downtime and warranty events.Feature: Premium Efficiency (91.70%) and 0.88 power factor, with 1.15 service factor. Business Impact: Lowers energy consumption and operational costs while maintaining strong torque characteristics at start-up. Application: Energy-conscious pumping stations, large HVAC loops, and processing lines seeking cost-per-kump efficiency improvements.Feature: Direct On Line starting with a 3-phase 60 Hz supply, footprint-friendly 284JM frame, and foot-mounted base type. Business Impact: Simplifies electrical design and minimizes soft-start wiring requirements, enabling quick, stable starts and reduced electrical stress. Application: Replacement or new-build motor drives in air handling, water treatment, and chemical processing systems.Feature: Certifications and design compliance including CSA, CSA EEV, UR, and NEMA Design Code A. Business Impact: Ensures regulatory compliance and safety across US/Canada sites, facilitating procurement approvals and installer confidence. Application: Projects requiring rigorous electrical certification and traceability, such as food & beverage or pharmaceutical pumping loops where standards matter. Feature: Stocking at multiple warehouses with zero-day lead time and US/EU/ASIA coverage. Business Impact: Shortens lead times, reduces inventory risk, and accelerates project schedules. Application: Global supply chains and maintenance programs needing rapid replacement parts or spares.
