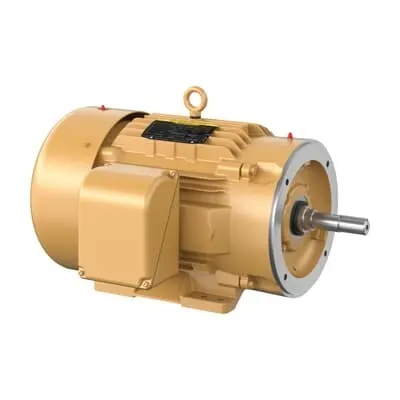

ABB 7BEJMM4108T Pump Motor - 30 HP, 3P, TEFC
Part Number: 7BEJMM4108T
Quick Summary
Pump Motor 7BEJMM4108T is a high-efficiency close-coupled motor designed for reliable 30 HP pumping in industrial processes. In demanding plant environments, downtime and energy waste threaten production schedules and operating costs. This model carries CSA, CSA EEV, and UR certifications, with a TEFC enclosure and NEMA design B for rugged duty, ensuring robust performance under 60 Hz, 230/460 V operation. Stocked across multiple warehouses, it supports fast project deployment and predictable maintenance planning, while integration with standard controls lowers total cost of ownership. The dual-voltage capability (230/460 V) simplifies panel design and reduces wiring errors during retrofit projects. Engineers can rely on readily available dimension data (frame 286JM) to accelerate procurement and commissioning.
Product Information
Extended Description
7BEJMM4108T ABB: Pump Motor 30 Hp 230 V (EJMM4108T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,3525RPM,3PH,60HZ,286JM,1048M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM4108T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYE380: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
EJMM4108T
Gross Volume
14448.906 in³
Gross Weight
406 lb
Horsepower Rating UL/CSA
30.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
30HP,3525RPM,3PH,60HZ,286JM,1048M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 30 HP, 3600 RPM, Frame Size 286Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM4108T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
90 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
406 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
68 A | 34 A
Rated Efficiency
91.70 %
Rated Speed
3525 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
30 HP, 3600 RPM, Frame Size 286Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 30 HP rating and 3525 r/min speed deliver strong starting torque and steady flow for centrifugal pumps in water transfer and processing lines, reducing cycle times and energy use. The Premium Efficiency rating (91.70%) translates to measurable energy savings and lower utility bills, especially in continuous operation environments. The TEFC enclosure protects the motor in dusty, humid, and outdoor locations, boosting reliability for outdoor pumping stations and chemical processing facilities. The C-Face drive end and foot mounting with a 286JM frame simplify installation and alignment, enabling faster commissioning and easier field service. Regreasable lubrication supports extended maintenance intervals and longer gearbox life, cutting maintenance costs. With 230/460 V options and 60 Hz compatibility, this motor fits standard plant electricals and minimizes interconnect complexity. Stock availability in US and China warehouses reduces lead time and supports multi-site operations.
