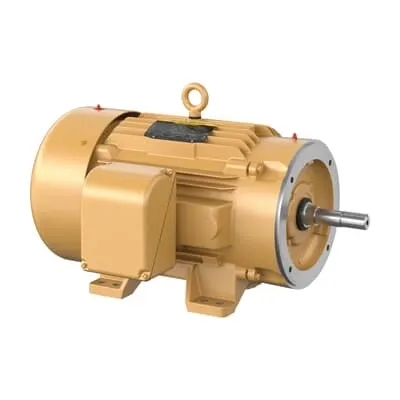

ABB EJMM4109T Pump Motor - 40HP, TEFC, CSA/UR
Part Number: 7BEJMM4109T
Quick Summary
Pump motor ABB EJMM4109T is a 40 HP, close-coupled 3-phase unit for robust pumping in industrial systems. In practice, engineers face downtime and supply gaps; this model addresses those pains with 0-day lead time and stock at multiple warehouses. It carries CSA, CSA EEV, and UR certifications, supporting safe operation in demanding environments. With IE3 premium efficiency and a TEFC enclosure, it helps reduce energy consumption and simplify compliance. Dual voltage capability (230/460 V) and a compact 324JM frame enable straightforward installation and reliable long-term performance, delivering clear business value through uptime, efficiency, and predictable procurement.
Product Information
Extended Description
7BEJMM4109T ABB: Pump Motor 40 Hp 230 V (EJMM4109T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,3530RPM,3PH,60HZ,324JM,1058M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM4109T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYG863: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
EJMM4109T
Gross Volume
18748.226 in³
Gross Weight
487 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
40HP,3530RPM,3PH,60HZ,324JM,1058M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 40 HP, 3600 RPM, Frame Size 324Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM4109T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
90 %
Product Name
Close Coupled Pump
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
487 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
90 A | 45 A
Rated Efficiency
92.40 %
Rated Speed
3530 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
40 HP, 3600 RPM, Frame Size 324Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure protects internal components from dust, humidity, and wash-down environments. Business Impact: Longer motor life and fewer unplanned outages in harsh plant conditions. Application: Outdoor pump rooms and chemical processing lines benefit from reduced maintenance and higher availability. Feature: 40 HP, 3530 r/min at 60 Hz with IE3 premium efficiency. Business Impact: Lower energy costs and improved process reliability thanks to high-efficiency operation. Application: Continuous-duty pumping in water treatment and industrial process streams. Feature: Dual voltage 230/460 V and 3-phase drive, with DOL starting. Business Impact: Flexible integration with existing electrical distribution and fast, simple startup. Application: Forestalling downtime during equipment swaps or expansions in mid-size plants. Feature: Frame Size 324JM, shaft diameter 1.25 in, foot-mounted with C-face mounting. Business Impact: Easy alignment, robust mounting, and compatibility with standard pump couplings. Application: Close-coupled pump installations in compact spaces. Feature: Regreasable bearings (6312 | Ball / 6309 | Ball) and a TEFC, NEMA-aligned design. Business Impact: Reduced maintenance intervals and dependable life in high-load pumping. Application: A wide range of industrial fluids and particulate-lou environments. Feature: Stocked at multiple warehouses and 0-day lead time. Business Impact: Accelerated procurement, improved project scheduling, and minimized downtime. Application: Capital projects and uptime-critical operations across the US and international sites.
