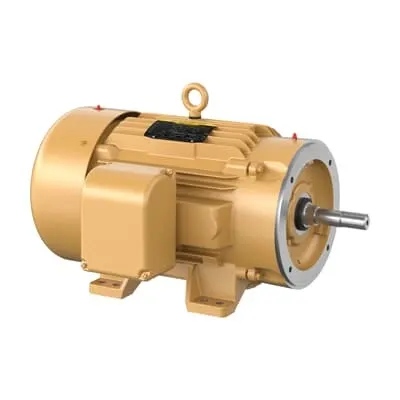

ABB EJMM4109T-G Pump Motor - CSA CSA EEV UR Certified
Part Number: 7BEJMM4109T-G
Quick Summary
Pump motor ABB EJMM4109T-G delivers reliable 40 HP close-coupled pumping capability for industrial systems. It addresses the common challenge of downtime and inconsistent performance in rugged environments by providing a robust 3‑phase solution with field-proven balance between power, efficiency, and footprint. This model carries key certifications such as CSA, CSA EEV, and UR, reinforcing electrical safety and compliance across North American installations. With a TEFC enclosure, 230/460 V operation, and a 324JM frame, it offers easy integration into existing pump trains while supporting maintenance planning and spare-part availability. For procurement teams, the combination of high efficiency and broad stock coverage translates to lower total cost of ownership and faster project timelines.
Product Information
Extended Description
7BEJMM4109T-G ABB: Pump Motor 40 Hp 230 V (EJMM4109T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
58M 2P TEFC HOR 324JM SE
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM4109T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
10LYK411: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
EJMM4109T-G
Gross Volume
18748.226 in³
Gross Weight
470 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
58M 2P TEFC HOR 324JM SE
Made To Order
No
Medium Description
Close Coupled Pump, 40 HP, 3600 RPM, Frame Size 324Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM4109T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
90 %
Product Name
Close Coupled Pump
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
470 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
90 A | 45 A
Rated Efficiency
92.40 %
Rated Speed
3530 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.25 in
Shaft Grounding
Shaft Grounding
Short Description
40 HP, 3600 RPM, Frame Size 324Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The EJMM4109T-G is a 40 HP, 3-phase motor. Its premium efficiency rating (IE3) reduces energy consumption, cutting operating costs in continuous pump duty across water treatment and industrial fluid handling. Application: Ideal for long-running, energy-sensitive pumping systems where utility costs are a consideration. Feature → Business Impact → Application: TEFC (Totally Enclosed Fan Cooled) enclosure provides reliable protection in challenging environments, reducing moisture and dust ingress. Application: Suitable for outdoor or damp plant areas, minimizing maintenance cycles in chemical processing or HVAC pumping. Feature → Business Impact → Application: 324JM frame with C-face mounting and foot-mounted base supports straightforward installation and replacement, shortening downtime during maintenance. Application: Fits close-coupled pump assemblies requiring a compact footprint and robust mechanical interface. Feature → Business Impact → Application: Direct On Line starting and 60-minute duty cycle with NEMA Design A, 3-phase operation ensures predictable start-up behavior and durable performance in continuous duty applications. Application: Water systems, cooling circuits, and industrial movers needing reliable start-up without soft-start hardware. Feature → Business Impact → Application: Rated current 90 A / 45 A and a 0.90 power factor optimize electrical demand and wiring design, helping control panel costs and energy losses. Application: Plant-wide motor optimization projects and retrofits for large pumping trains. Feature → Business Impact → Application: Frame size 324JM, shaft diameter 1.25 in, and 3600/3530 r/min speeds provide a well-understood mechanical package for OEMs and integrators. Application: Replacement motors in legacy installations and new pump builds requiring standardization and interchangeability. Feature → Business Impact → Application: Stocked at multiple global locations with 0-day lead times, improving procurement velocity. Application: Fast-track project timelines and minimized downtime in global operations.
Get a Quick Quote for a ABB 7BEJMM4109T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM4109T-G?
Enquire Now
FAQs
The EJMM4109T-G is designed for foot-mounted base with horizontal orientation and a C-Face drive end flange. It uses a 324JM frame and is compatible with close-coupled pump assemblies, allowing straightforward installation and easy alignment with standard shaft diameters (1.25 in). Direct On Line starting simplifies integration into existing control panels.
It is a 3-phase motor rated for 60 Hz operation with 230/460 V, delivering 40 HP and a rated current of 90 A / 45 A. The motor achieves 92.4% efficiency (IE3) with a 0.90 power factor, and a synchronous speed of 3600 r/min. Starting is Direct On Line, suitable for steady pumping duties.
Yes. The EJMM4109T-G is rated for continuous duty with a 60-minute duty time, NEMA Design Code A, and a continuous pump application footprint. It supports reliable operation in water pumping, cooling circuits, and other industrial fluids when installed as a close-coupled pump motor.
This motor carries CSA, CSA EEV, and UR certifications, validating electrical safety and energy efficiency for U.S. and Canadian projects. Certifications help ensure regulatory compliance, reduce risk during audits, and facilitate faster project approvals for critical pump installations.
The EJMM4109T-G is stocked across multiple warehouses (US, GB, SG, CN), enabling rapid procurement and reduced lead times. Warranty considerations specify that products under warranty must be returned, guiding both procurement and after-sales processes to minimize downtime and maintain service levels.
