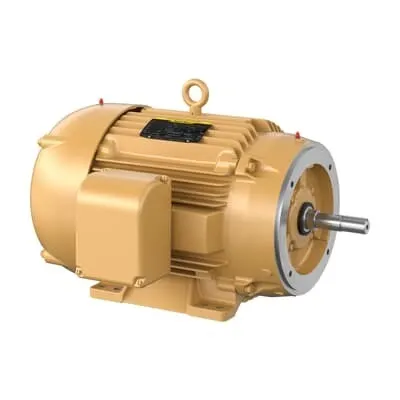

ABB 7BEJMM4114T Pump Motor - 50HP, 230/460V CSA/UR
Part Number: 7BEJMM4114T
Quick Summary
ABB 7BEJMM4114T Pump Motor powers close-coupled pumps in demanding industrial processes. With 50 HP output and a 230/460 V, 3-phase rating, this motor is engineered for reliable performance in water treatment, chemical processing, and general pumping applications. The 326JM frame, TEFC enclosure, and C-face mounting simplify installation in compact motor skids and retrofit projects. Stock availability is a key differentiator: zero-day lead times and presence in multiple US warehouses minimize downtime and expedite project timelines. Certified for CSA, CSA EEV, and UR recognition, the motor aligns with strict safety standards while delivering energy efficiency. This combination supports strong lifecycle value, straightforward maintenance, and predictable procurement for engineering teams and procurement specialists alike.
Product Information
Extended Description
7BEJMM4114T ABB: Pump Motor 50 Hp 230 V (EJMM4114T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,3540RPM,3PH,60HZ,326JM,1252M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM4114T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
12LYJ043: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
EJMM4114T
Gross Volume
18748.226 in³
Gross Weight
590 lb
Horsepower Rating UL/CSA
50.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
50HP,3540RPM,3PH,60HZ,326JM,1252M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 50 HP, 3600 RPM, Frame Size 326Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM4114T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
89 %
Product Name
Close Coupled Pump
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
590 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
112 A | 56 A
Rated Efficiency
93 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.75 in
Short Description
50 HP, 3600 RPM, Frame Size 326Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 50 HP output at 60 Hz delivers robust pump drive for mid-size process systems, increasing throughput and system reliability in municipal and industrial water applications. Application: Close-coupled pump installations in water treatment and chemical processing benefit from compact fit, reduced footprint, and simplified alignment. Feature → Business Impact → Application: 230/460 V dual voltage rating supports flexible electrical sourcing and easier integration with existing motor control centers. Application: Retrofit projects and new builds can adapt to voltage availability without reengineering power distribution. Feature → Business Impact → Application: TEFC enclosure and 326JM frame provide rugged protection against dust, moisture, and ambient heat, extending service life in demanding plant environments. Application: Outdoor or harsh indoor spaces where enclosure integrity is critical. Feature → Business Impact → Application: Direct On Line starting minimizes control complexity and reduces soft-start equipment requirements, lowering upfront cost and enabling rapid motor engagement in start-stop pump cycles. Application: Municipal pumping stations and process lines with frequent startup sequences. Feature → Business Impact → Application: Regreasable lubrication and long-life bearings reduce maintenance frequency and extend bearing life, cutting maintenance costs and downtime. Application: Continuous duty pumps in water treatment and processing facilities where uptime is mission-critical. Feature → Business Impact → Application: CSA/UR/NEMA A design and IE3 efficiency deliver regulatory compliance and energy savings, supporting green initiatives and cost-of-ownership improvements. Application: OEMs targeting compliance and efficiency mandates in North American markets. Safety note: the motor is designed for horizontal mounting with C-face drive end and foot mounting, enabling straightforward service access and vibration control in standard motor bases, which shortens installation time and reduces risk during commissioning.
