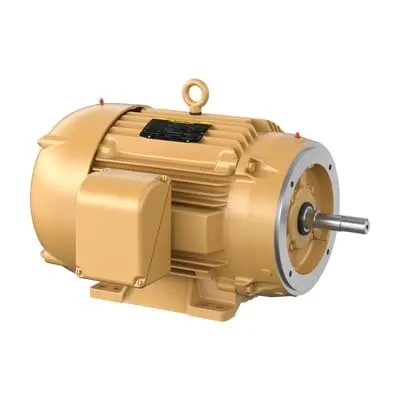

ABB EJMM4114T-G Pump Motor - IE3 Premium Efficiency
Part Number: 7BEJMM4114T-G
Quick Summary
ABB EJMM4114T-G Pump Motor delivers reliable 50 HP pumping power for industrial water systems. This close-coupled pump motor is designed for demanding applications, offering robust performance and straightforward installation in process plants, HVAC cooling loops, and water treatment lines. Users often struggle with space constraints, alignment hassles, and energy waste from inefficient motors; EJMM4114T-G addresses these pain points with a compact 326JM frame and a C-face drive end for easy mounting. The motor carries multiple certifications and compliance marks, including CSA, CSA EEV, and UR, ensuring safe operation in regulated environments. With a TEFC enclosure and 230/460 V, 60 Hz three-phase operation, the solution also reduces maintenance downtime and total cost of ownership while delivering dependable, long-life performance.
Product Information
Extended Description
7BEJMM4114T-G ABB: Pump Motor 50 Hp 230 V (EJMM4114T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
52M 2P TEFC HOR 326JM SE
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM4114T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
12LYH558: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
EJMM4114T-G
Gross Volume
18748.226 in³
Gross Weight
575 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
52M 2P TEFC HOR 326JM SE
Made To Order
No
Medium Description
Close Coupled Pump, 50 HP, 3600 RPM, Frame Size 326Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJMM4114T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
90 %
Product Name
Close Coupled Pump
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
575 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
112 A | 56 A
Rated Efficiency
93 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.75 in
Shaft Grounding
Shaft Grounding
Short Description
50 HP, 3600 RPM, Frame Size 326Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Close-coupled design reduces installation footprint and alignment effort, enabling faster commissioning and space-saving layouts in compact pump skids. This translates to lower installation costs and quicker system startup in material handling and wash-down zones. Application: Close-coupled pump assemblies in water systems and process lines where space is at a premium. Feature → Benefit: 326JM frame with C-Face drive end flange simplifies mechanical coupling and service accessibility, improving uptime and maintenance throughput. Application: OEM pump packages and retrofit projects requiring straightforward alignment checks and quick shaft coupling. Feature → Business Impact: TEFC enclosure protects against dust, moisture, and heavy industrial environments, extending motor life and reducing unscheduled downtime. Application: Pumps in chemical processing, food & beverage, and wastewater facilities. Feature → Benefit: Premium efficiency IE3 with 93% efficiency and 0.90 PF reduces energy consumption and utility costs, supporting regulatory compliance and greener plant operations. Application: Continuous duty pumping, large-flow cooling circuits, and energy-intensive process streams. Feature → Application: 230/460 V, 3-phase, 60 Hz operation enables seamless integration with common plant electrical systems, minimizing wiring changes and ensuring reliable DOL starting. Application: New installations and replacement motors in legacy 230/460 V networks. Feature → Business Impact: Insulation class F and synchronous speed of 3600 r/min provide thermal headroom and stable performance under demanding loads, reducing the risk of overheating. Application: High-load, continuous-duty pumps in refinery or mining environments. Feature → Compatibility: Foot-mounted configuration with horizontal mounting orientation (F1) and Synchronous drive end support ensures versatile installation in pump skids, with straightforward alignment and minimal foundation requirements. Application: Retrofit and new builds across manufacturing lines and water treatment facilities. Feature → Objection Handling: Direct On Line starting minimizes soft-start hardware needs and simplifies control schemes, reducing total cost of drive hardware and commissioning time. Application: Plants seeking reliable, cost-effective start methods for large, beltless pumps. Feature → Industry Context: Stocked at multiple warehouses (US and international) with zero-day lead time and a clear warranty policy, ensuring fast response and consistent supply for maintenance teams. Application: Global maintenance planning and multi-site operations.
Get a Quick Quote for a ABB 7BEJMM4114T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM4114T-G?
Enquire Now
FAQs
Yes. The EJMM4114T-G is configured for 230V or 460V, 3-phase operation at 60 Hz, allowing seamless integration with typical industrial power distributions. This versatility supports both new installations and upgrades without changing motor hardware.
The motor carries CSA, CSA EEV, and UR certifications, with a NEMA design standard. This combination provides compliance for a broad range of regulatory environments while ensuring safe operation in industrial facilities.
The EJMM4114T-G uses a foot-mounted design with a horizontal orientation (F1) and a C-Face drive end flange. The TEFC enclosure protects against dust and moisture, enabling reliable operation in harsh factory environments.
The motor delivers 93% efficiency with a 0.90 power factor, and it supports Direct On Line starting. These characteristics reduce energy costs and simplify control strategies in continuous-duty pumping applications.
Lead time is listed as 0 day with stock at multiple warehouses (including US and international locations). This enables rapid procurement for maintenance schedules and minimizes downtime during replacements or upgrades.
