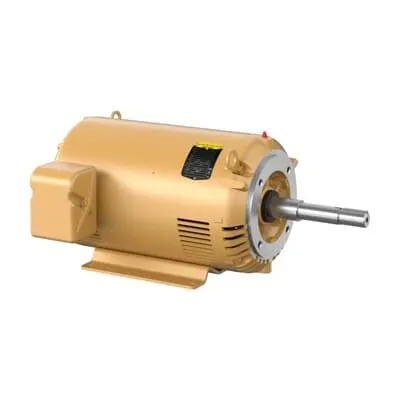

ABB EJPM2514T Pump Motor - 20 HP, 3PH, OPSB Enclosure
Part Number: 7BEJPM2514T
Quick Summary
EJPM2514T Pump Motor provides reliable 20 HP power for close-coupled pumps in industrial settings. For engineers and maintenance teams, matching horsepower, voltage, and enclosure to your process can be a source of project delays. This ABB motor carries CSA, CSA EEV, and UR listings, reinforcing safety and regulatory compliance across North American facilities. With a 230/460 V, 60 Hz rating, C-face mounting, and OPSB enclosure, installation aligns with standard pump configurations and minimizes integration risk. Its 1.15 service factor, 3510 r/min rated speed, and 254 JP frame support continuous duty in mid-range processes, delivering energy-efficient operation and predictable performance that reduce downtime and operating costs.
Product Information
Extended Description
7BEJPM2514T ABB: Pump Motor 20 Hp 230 V (EJPM2514T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3510RPM,3PH,60HZ,254JP,3928M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM2514T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
39LYK061: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
EJPM2514T
Gross Volume
14448.906 in³
Gross Weight
185 lb
Horsepower Rating UL/CSA
20.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
20HP,3510RPM,3PH,60HZ,254JP,3928M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 20 HP, 3600 RPM, Frame Size 254Jp, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJPM2514T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
88 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
185 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
47 A | 23.5 A
Rated Efficiency
91 %
Rated Speed
3510 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
20 HP, 3600 RPM, Frame Size 254Jp, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The EJPM2514T delivers 20 HP with a 3510 r/min rated speed and a 60 Hz, 230/460 V three-phase supply, enabling high torque with efficient operation across pumping applications. This translates to lower energy consumption and steadier flow in water treatment and chemical processing lines, supporting consistent production and reduced energy costs. Feature → Business Impact → Application: The OPSB enclosure paired with a 254 JP frame and C-face drive end enables straightforward installation and rugged protection in harsh environments, minimizing enclosure ingress while fitting standard pump couplings for quick commissioning. Feature → Business Impact → Application: Direct On Line starting simplifies control integration and minimizes drive requirements, reducing installation complexity and startup time in industrial facilities. Feature → Business Impact → Application: A service factor of 1.15 and a proven bearing arrangement (6309 Ball / 6208 Ball) support reliable, continuous-duty operation, lowering maintenance cycles and extending motor life in continuous production lines. Feature → Business Impact → Application: Regreasable lubrication and a measured footprint (31 in length, 23.75 in width, 19.625 in height) enable predictable maintenance planning and space-efficient layouts in pump houses and plant rooms. Feature → Business Impact → Application: Compliance with CSA, CSA EEV, and UR listings provides regulatory confidence for North American installations, ensuring procurement teams can qualify the motor foraudits and inspections while maintaining safety standards.
Get a Quick Quote for a ABB 7BEJPM2514T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJPM2514T?
Enquire Now
FAQs
The EJPM2514T is a 3-phase motor rated for 230/460 V at 60 Hz and is designed for horizontal, foot-mounted installation with a C-face drive end. It uses an OPSB enclosure for protection, making it compatible with standard pump configurations and easy integration into existing plant layouts.
Key specs include 20 HP output, 3510 r/min nominal speed, 1.15 service factor, and 91% efficiency. The motor is 3-phase with 230/460 V ratings and direct-on-line starting, enabling straightforward control and reliable performance in continuous-duty pumping applications.
Yes. The 254 JP frame, C-face mounting, and OPSB enclosure are optimized for close-coupled pump assemblies commonly used in water treatment, chemical processing, and general industrial pumping. Its compact footprint and robust protection simplify installation and reduce space requirements in pump houses.
The EJPM2514T carries CSA, CSA EEV, and UR listings, providing recognized safety and regulatory compliance for North American facilities. These certifications support audit readiness and enhance procurement confidence for regulated environments.
Lubrication is regreasable, and bearing arrangements include 6309 and 6208 ball bearings, supporting longer service life with easier maintenance. The motor’s energy efficiency, 1.15 service factor, and straightforward DOL starting contribute to lower operating costs and reduced downtime, delivering a favorable return on investment in continuous-duty pumping scenarios.
