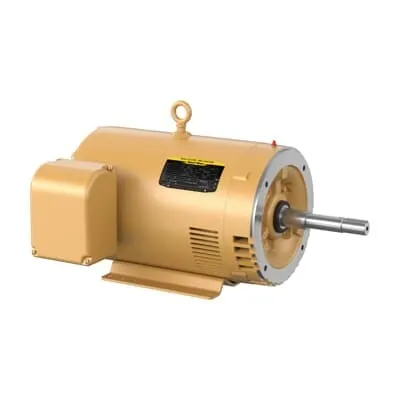

ABB 7BEJPM2531T Pump Motor - 25HP IE3 Premium Efficiency
Part Number: 7BEJPM2531T
Quick Summary
The 7BEJPM2531T pump motor from ABB delivers reliable 25 HP pumping performance for close-coupled systems in industrial facilities. It addresses downtime and performance gaps by combining robust 60 Hz operation with a dual voltage capability (230/460 V) and direct-on-line start. This model is designed to meet stringent efficiency and safety standards while providing fast availability, with 0 day lead times and stock across multiple warehouses. Key certifications and design features—IE3 Premium Efficiency, CSA/UR/CSA EEV compatibility, and OPSB enclosure—support compliance in regulated environments. For engineers and procurement teams, this combination translates into lower energy costs, easier maintenance, and a smoother installation process for high-demand pumping applications.
Product Information
Extended Description
7BEJPM2531T ABB: Pump Motor 25 Hp 230 V (EJPM2531T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1775RPM,3PH,60HZ,284JP,4050M,O
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM2531T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
40LYE210: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
EJPM2531T
Gross Volume
14448.906 in³
Gross Weight
335 lb
Horsepower Rating UL/CSA
25.000 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
25HP,1775RPM,3PH,60HZ,284JP,4050M,OPSB,F
Made To Order
No
Medium Description
Close Coupled Pump, 25 HP, 1800 RPM, Frame Size 284Jp, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJPM2531T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
82 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
335 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
60 A | 30 A
Rated Efficiency
93.60 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
40E210X793
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
25 HP, 1800 RPM, Frame Size 284Jp, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 25 HP output with 1775 r/min rating delivers strong torque for demanding pumping applications, reducing start-up strain and prolonging bearing life in continuous-duty service. Benefit: Improved system reliability and lower maintenance costs; Application: Water treatment, chemical processing, and industrial fluid handling where consistent flow is critical. Feature → Business Impact → Application: IE3 Premium Efficiency across 230/460 V operation lowers energy consumption and reduces total cost of ownership; Application: High-energy-intensity processes seeking regulatory compliance and utility incentives. Feature → Business Impact → Application: Direct On Line starting and three-phase operation simplify electrical design, minimize control panel complexity, and shorten installation time; Application: OEM pump assemblies and retrofit projects with space constraints. Feature → Business Impact → Application: OPSB enclosure and robust frame (284JP) provide rugged housing for harsh environments, enhancing protection against dust and moisture ingress; Application: Chemical plants and food/beverage processing lines. Feature → Business Impact → Application: Close-coupled design reduces alignment and coupling losses, improving mechanical efficiency and reducing footprint; Application: Compact pump stations and space-limited Skid installations. Feature → Business Impact → Application: Dual voltage flexibility (230/460 V) supports global deployment and spares planning; Application: International facilities and multi-site rollouts where stock optimization matters. This combination also aligns with long-tail keywords like “3-phase motor with OPSB enclosure” and “NEMA-frame pump motor,” reinforcing search visibility while delivering tangible returns on equipment investment.
Get a Quick Quote for a ABB 7BEJPM2531T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJPM2531T?
Enquire Now
FAQs
The 7BEJPM2531T is a foot-mounted, C-Face mounted motor configured for 3-phase operation at 60 Hz with dual voltage 230 V or 460 V. It uses a 284JP frame and supports direct-on-line starting, simplifying electrical integration in standard pump assemblies and retrofit projects. This makes it compatible with common VFDs or contactor-based starter configurations while maintaining alignment with NEMA design codes.
Key specs include 25 HP output, 1775 r/min rated speed, 60 Hz frequency, and a rated current of 60 A or 30 A depending on voltage. It features IE3 Premium Efficiency, which reduces energy consumption over the motor’s life. The motor is 3-phase with 230 V/460 V dual voltage and a starting method of Direct On Line, supporting robust performance in continuous duty.
Yes. With a continuous-duty rating, high efficiency (IE3), and a robust OPSB enclosure, the 7BEJPM2531T is well-suited for persistent pumping tasks in water treatment, chemical processing, and industrial liquids handling. The close-coupled design minimizes mechanical losses and footprint, improving reliability in space-constrained skid installations.
This motor carries CSA, CSA EEV, and UR certification agencies, ensuring regulatory compliance for industrial use. It features an OPSB enclosure for added protection in demanding environments, and it aligns with NEMA design standards (Code A) and premium efficiency requirements, supporting both safety and energy-performance expectations.
ROI is driven by IE3 efficiency, reduced energy costs, and lower maintenance due to the rugged steel frame and reliable bearings. The motor’s lead time of 0 day and multiple stock locations minimize downtime during procurement, while direct-on-line starting simplifies drive design and can lower control panel costs over the motor’s lifecycle.
