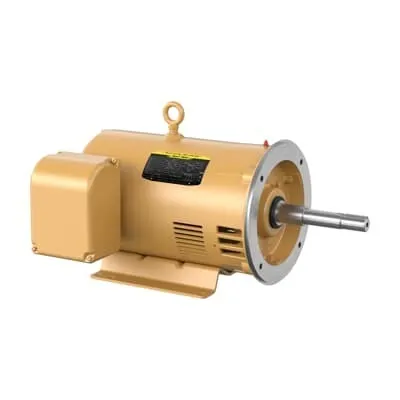

ABB 7BEJPM2538T Pump Motor - 40 HP, 3510 RPM, OPSB
Part Number: 7BEJPM2538T
Quick Summary
The ABB 7BEJPM2538T pump motor delivers 40 HP for close-coupled pump systems in industrial processes. Engineers face downtime and performance variability; this motor is designed to minimize wear and maximize reliability in continuous duty environments. It carries key certifications such as CSA/UR recognition with CSA EEV, and IE3 premium efficiency, supporting safe operation and regulatory compliance. With 3-phase 60 Hz operation, a 230/460 V rating, and the OPSB enclosure, it integrates smoothly into standard plant electrical architectures. The design prioritizes easy installation, predictable torque, and long service life, helping reduce maintenance costs while meeting stringent uptime targets and energy-savings initiatives. This aligns with plant engineers and procurement teams evaluating total cost of ownership.
Product Information
Extended Description
7BEJPM2538T ABB: Pump Motor 40 Hp 230 V (EJPM2538T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,3510RPM,3PH,60HZ,286JP,3956M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM2538T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
39LYE303: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
EJPM2538T
Gross Volume
16997.25 in³
Gross Weight
329 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
40HP,3510RPM,3PH,60HZ,286JP,3956M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 40 HP, 3600 RPM, Frame Size 286Jp, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJPM2538T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
90 %
Product Name
Close Coupled Pump
Product Net Depth / Length
32.75 in
Product Net Height
21.625 in
Product Net Weight
329 lb
Product Net Width
24 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
90 A | 45 A
Rated Efficiency
92.40 %
Rated Speed
3510 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
40 HP, 3600 RPM, Frame Size 286Jp, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature: Close-coupled, C-Face mounting with a foot-mounted base and frame size 286JP. Business Impact: Simplifies alignment and installation, reduces vibration, and speeds commissioning in tight spaces. Application: Ideal for close-coupled pump configurations in water transfer and processing lines. Long-tail keyword usage: close-coupled pump motor, frame 286JP, C-Face mounting. Feature: OPSB enclosure with 230/460 V, 60 Hz 3-phase operation. Business Impact: Delivers robust protection against dust and moisture, enabling reliable operation in demanding plant environments while meeting energy standards. Application: Suitable for open-plant pump rooms and outdoor installations in industrial facilities. Feature: 40 HP output with 3510 r/min nominal speed and 1.15 service factor. Business Impact: Provides ample torque reserve for surges, improves uptime, and reduces the need for oversizing. Application: Continuous-duty pumping in process and water handling plants. Feature: Regreasable bearings (6312 / 6208) and rugged ball bearings. Business Impact: Extends bearing life, lowers maintenance intervals, and minimizes unscheduled downtime. Application: Field service scenarios where lubrication access is feasible. Feature: IE3 premium efficiency and CSA/UR certifications. Business Impact: Lowers energy costs, supports regulatory compliance, and simplifies supplier qualification. Application: Plant-wide efficiency initiatives and quality-assurance driven procurement in US and global facilities. Feature: 230 V / 460 V dual voltage capability and 60 Hz operation. Business Impact: Flexible power sourcing across plants and modular spares strategy reduces wiring changes and inventory. Application: Multi-site operations with standardized electrical infrastructure.
