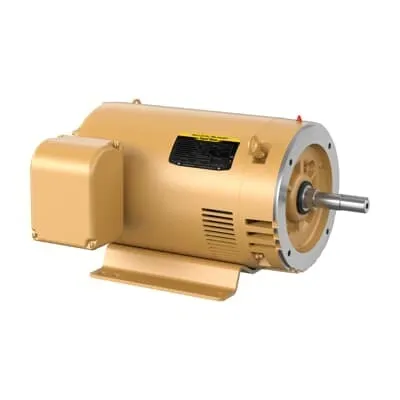

ABB 7BEJPM2539T Pump Motor - OPSB Enclosure
Part Number: 7BEJPM2539T
Quick Summary
ABB 7BEJPM2539T Pump Motor is a close-coupled, 40 HP, 230 V motor designed for pumping applications across industrial facilities such as water treatment, chemical processing, and municipal infrastructure. Operators often face downtime, compatibility gaps, and extended lead times when sourcing reliable pump solutions for multi-vendor systems. This model carries CSA, UR, and CSA EEV listings for global safety compliance, plus IE3 premium efficiency to reduce energy use. With a rugged OPSB enclosure and a durable 324JP frame, it enables straightforward installation and dependable operation in demanding environments, supporting cost-effective maintenance and longer mean time between failures.
Product Information
Extended Description
7BEJPM2539T ABB: Pump Motor 40 Hp 230 V (EJPM2539T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,1770RPM,3PH,60HZ,324JP,4064M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM2539T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
40LYE297
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
EJPM2539T
Gross Volume
18748.226 in³
Gross Weight
378 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
40HP,1770RPM,3PH,60HZ,324JP,4064M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 40 HP, 1800 RPM, Frame Size 324Jp, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJPM2539T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
82 %
Product Name
Close Coupled Pump
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
378 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
98 A | 49 A
Rated Efficiency
94.10 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
40 HP, 1800 RPM, Frame Size 324Jp, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
F
Voltage Rating
230 V | 460 V
Close-coupled design with OPSB enclosure enhances alignment and protection, reducing vibration and wear. Business impact: lower maintenance costs, easier retrofits, and longer motor life in challenging pump installations. Application: retrofits and new builds in water, wastewater, and industrial process pumping. The 40 HP, 1770 rpm, 3-phase, 230/460 V rating provides robust flow with simple electrical integration; application: high-demand pumping systems with standard voltage supply. Direct On Line starting and a 60-Min duty profile support straightforward, low-cost installation and reliable performance in continuous operation environments. This translates to faster commissioning and less downtime during startup. IE3 premium efficiency delivers meaningful energy savings over the motor’s lifetime, reducing operating expenses and supporting sustainability goals. Bearings are 6312 Ball and regreasable, enabling longer service intervals and easier lubrication schedules. Application: long-run pumping with predictable maintenance windows. The foot-mounted, C-face mounting on a 324JP frame simplifies retrofits and alignment in existing equipment bays. Stock is readily available across multiple warehouses, improving procurement reliability for large-scale projects and emergency replacements. Industry context: the combination of OPSB, 40 HP power, and North American safety certifications aligns with common utility and industrial standards, helping avoid project delays and compliance gaps.
Get a Quick Quote for a ABB 7BEJPM2539T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJPM2539T?
Enquire Now
FAQs
The ABB 7BEJPM2539T is a three-phase motor designed for 230/460 V operation at 60 Hz. It delivers 40 HP with a direct-on-line starting method, suitable for standard industrial power systems and compatible with common electrical distributions found in water treatment, chemical processing, and general pumping installations.
This motor features an OPSB enclosure for protective reliability in demanding environments and a foot-mounted, C-face design. The combination simplifies mechanical alignment, reduces maintenance complexity, and supports straightforward installation in retrofit or new-build pump setups.
The motor carries CSA, CSA EEV, and UR certifications, providing safety and compliance assurance for North American and global markets. These listings help streamline procurement for regulated industries and facilitate installation across multi-site operations.
Yes. The model is specified for Continuous duty with a 60-minute duty time profile and 3-phase operation. It also integrates high-efficiency IE3 performance, aiding reliable operation in continuous pumping tasks while helping reduce energy costs over time.
Expect energy savings from IE3 premium efficiency, regreasable bearings for longer lubrication intervals, and a rugged OPSB enclosure that minimizes protective failures. These factors combine to lower operating costs, extend service intervals, and improve overall return on investment for pumping projects.
