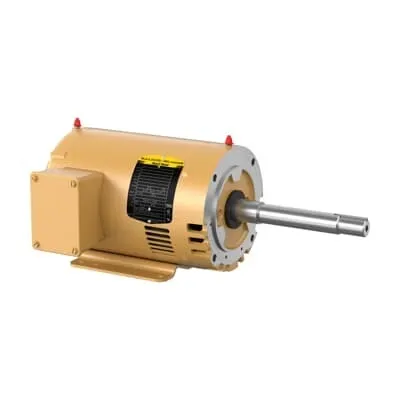

ABB EJPM3157T Pump Motor - IE3 Premium Efficiency
Part Number: 7BEJPM3157T
Quick Summary
The ABB EJPM3157T pump motor delivers 2 HP for reliable close-coupled pumping in industrial processes. This compact, three-phase motor is designed to minimize energy use while delivering steady torque at 60 Hz. Engineers often struggle with downtime and maintenance constraints; the EJPM3157T addresses this with a robust OPSB enclosure and a foot-mounted, C-face frame that simplifies installation in tight spaces. It carries CSA, CSA EEV, and UR certifications, aligns with NEMA design standards, and supports a 230/460 V, 60 Hz power supply. By pairing premium efficiency with durable construction, this motor helps reduce operating costs and extend service intervals, while offering compatible mounting, predictable performance, and easy serviceability across varied industrial environments.
Product Information
Extended Description
7BEJPM3157T ABB: Pump Motor 2 Hp 230 V (EJPM3157T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,145JP,3528M,OP
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM3157T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYR432: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EJPM3157T
Gross Volume
5274.135 in³
Gross Weight
43 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
2HP,1760RPM,3PH,60HZ,145JP,3528M,OPSB,N
Made To Order
No
Medium Description
Close Coupled Pump, 2 HP, 1800 RPM, Frame Size 145Jp, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJPM3157T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
75 %
Product Name
Close Coupled Pump
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
43 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
86.50 %
Rated Speed
1755 r/min
Replaced Product ID (OLD)
7B35R432G073G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Jp, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature: 2 HP, 1755 r/min, 60 Hz, 3-phase operation with 230/460 V input. Business Impact: Delivers reliable torque with straightforward electrical compatibility, minimizing control complexity and reducing startup risk. Application: Ideal for close-coupled pump assemblies in process and industrial fluid handling. The motor’s 1755 r/min rated speed aligns with standard pump curves, improving process stability and reducing vibration-related wear. Feature: IE3 Premium Efficiency. Business Impact: Cuts energy consumption and lowers operating costs over the motor’s life, improving overall plant efficiency. Application: Suitable for continuous duty in clean, regulated environments where electricity costs are a key concern. Feature: OPSB enclosure. Business Impact: Provides robust protection against dust, moisture, and light wash-downs, extending motor life in harsh facilities. Application: Outdoor or semi-indoor pump installations with limited protective housing. Feature: Frame Size 145JP and Foot Mounted mounting. Business Impact: Simplifies installation, reduces setup time, and enables interchangeable bases with standard motor systems. Application: Horizontal mounting in compact spaces with C-face compatibility. Feature: Direct On Line starting and 60 Min duty. Business Impact: Enables simple drive control and reliable startup, lowering control hardware needs and maintenance costs. Application: Standard plant pumps needing straightforward, dependable operation. Feature: NEMA Design Code B, Insulation Class F, Bearing 6206 Ball. Business Impact: Enhances reliability under typical industrial temperatures and loads, offering predictable insulation and bearing life. Application: Long-life operation in 40 °C ambient conditions with routine maintenance windows. Overall, the EJPM3157T integrates industry-standard specs with practical installability and measurable cost savings for industrial pumping applications.
Get a Quick Quote for a ABB 7BEJPM3157T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJPM3157T?
Enquire Now
FAQs
The EJPM3157T uses horizontal, foot-mounted mounting with a C-face and frame size 145JP. It is designed for easy integration with standard bases and close-coupled pump assemblies, reducing alignment time and simplifying retrofits in existing equipment layouts.
This is a 3-phase, 60 Hz motor rated for 230/460 V operation. It provides a rated current of 5.6 A and 2.8 A corresponding to the power and voltage configuration, with Direct On Line starting for straightforward control and minimal auxiliary hardware.
Yes. The motor is designed for continuous duty with a 60-minute duty time rating, NEMA Design Code B, and Insulation Class F, ensuring reliable performance under regular operating loads in demanding process environments.
The EJPM3157T carries CSA, CSA EEV, and UR certifications, supports NEMA standards, and adheres to IE3 Premium Efficiency requirements for energy-conscious operations, providing regulatory compliance and supplier qualification benefits.
Customers benefit from premium efficiency (lower energy costs), robust construction (OPSB enclosure, 145JP frame, bearings), and modular compatibility (foot-mounted, DOL start). These factors translate to reduced downtime, longer service intervals, and faster payback in steady-state pumping applications.
