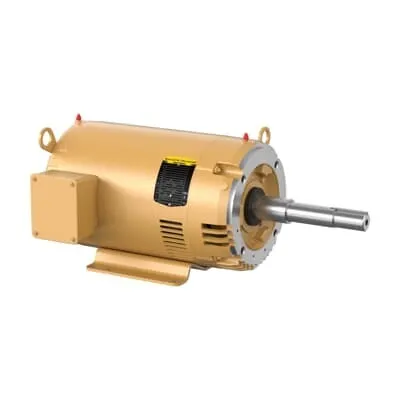

ABB 7BEJPM3312T Pump Motor - OPSB Enclosure, 10HP
Part Number: 7BEJPM3312T
Quick Summary
ABB 7BEJPM3312T pump motor delivers reliable close-coupled pumping for 10 HP, 3-phase systems operating at 60 Hz. This compact, robust solution addresses space constraints and mounting compatibility often faced in industrial pump applications. It carries CSA, CSA EEV, and UR certifications, reinforcing compliance and safety across North American facilities. With a 230/460 V rating, 3500 rpm target speed, and Premium Efficiency design, this motor helps reduce energy consumption while maintaining performance. By choosing ABB, you gain a readily stocked, globally supported motor family that integrates smoothly with standard pump assemblies and preventive maintenance programs, supporting uptime, procurement efficiency, and total cost of ownership goals.
Product Information
Extended Description
7BEJPM3312T ABB: Pump Motor 10 Hp 230 V (EJPM3312T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3500RPM,3PH,60HZ,213JP,3728M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM3312T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
37LYF810: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EJPM3312T
Gross Volume
7192.91 in³
Gross Weight
122 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,3500RPM,3PH,60HZ,213JP,3728M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 10 HP, 3600 RPM, Frame Size 213Jp, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJPM3312T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
122 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
24 A | 12 A
Rated Efficiency
90.20 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
10 HP, 3600 RPM, Frame Size 213Jp, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The Close-Coupled Pump motor design with an OPSB enclosure reduces footprint and simplifies installation in tight pump rooms, lowering labor costs and permitting rapid commissioning for water handling and industrial processing lines. This translates to faster project timelines and more reliable everyday operation in mining, chemical processing, and wastewater facilities. Feature → Business Impact → Application: 3-phase operation at 230/460 V with a 60 Hz frequency provides versatility across regional power systems, enabling seamless system integration and minimizing voltage adaptation needs in multi-site deployments. This is ideal for OEMs and industrial plants seeking standardized components across sites. Feature → Business Impact → Application: 10 HP, 3500 rpm (2-pole) performance delivers strong flow and head in close-coupled pump configurations, supporting consistent pump curves and reduced risk of under- or over-sizing in filtration and irrigation systems. Feature → Business Impact → Application: Premium Efficiency (NEMA 12-12) reduces operating costs through lower energy losses and cooler running temperatures, improving motor life and facility energy intensity metrics in food & beverage, chemical, and water treatment plants. Feature → Business Impact → Application: Direct On Line starting and 3-phase protection enable simple, robust startups with minimal load management requirements, reducing soft-start equipment needs and enabling quick recovery after short-term power interruptions in mining and process industries. Feature → Business Impact → Application: Foot mounting with C-Face drive end flange ensures straightforward installation and alignment with standard pump assemblies, decreasing commissioning time and improving maintainability in OEM projects and maintenance-driven upgrades. Feature → Business Impact → Application: Ball bearings (6309, 6206) and regreasable lubrication provide long service life and reduced maintenance intervals, supporting high-availability pumping in municipal water systems and remote facilities where maintenance windows are limited. Feature → Business Impact → Application: Insulation Class F, temperature rating at 40 °C ambient, and OPSB enclosure deliver reliable operation in moderate to warm environments, helping facilities meet regulatory and safety expectations in chemical processing and oil & gas pump stations.
