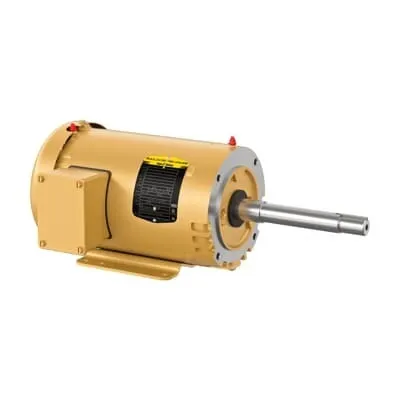

ABB 7BEJPM3554T Pump Motor - TEFC 3-Phase, 60 Hz, 1.5 HP
Part Number: 7BEJPM3554T
Quick Summary
ABB 7BEJPM3554T is a close-coupled pump motor used for industrial pumping and fluid transfer applications. It delivers 1.5 HP at 230/460 V with a TEFC enclosure and 60 Hz operation, making it suitable for demanding environments where space is tight and downtime is costly. Engineers often contend with motor wear, vibration, and inconsistent performance from legacy solutions; this model’s premium efficiency and robust bearings help reduce total cost of ownership. Certified for CSA, CSA EEV, and UR, it supports regulatory compliance while maintaining stable performance. In practice, rapid procurement via stocked warehouses and straightforward direct-on-line starts translate to faster ROI for facilities seeking dependable pump motors and energy savings.
Product Information
Extended Description
7BEJPM3554T ABB: Pump Motor 1.5 Hp 230 V (EJPM3554T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145JP,3524M,
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM3554T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE972: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EJPM3554T
Gross Volume
3590.443 in³
Gross Weight
41 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145JP,3524M,TEFC
Made To Order
No
Medium Description
Close Coupled Pump, 1.5 HP, 1800 RPM, Frame Size 145Jp, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJPM3554T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
Close Coupled Pump
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
41 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Jp, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 1.5 HP rating at 1770 rpm (close to 1800) provides ample pumping capacity for mid-size fluid transfer tasks while keeping energy use predictable, reducing operating costs. This translates to lower energy bills in municipal and industrial water handling. Application-ready with a 230/460 V, 60 Hz, 3-phase supply, it fits standard plant electrical infrastructure and simplifies wiring diagrams for OEMs. Feature → Business Impact → Application: TEFC enclosure and frame size 145JP with C-face mounting deliver robust protection against dust and moisture and simplify horizontal, foot-mounted installation in cramped pump rooms. Result: improved reliability and faster commissioning in process lines and cooling systems. Feature → Business Impact → Application: Premium efficiency (NEMA 12-12) and insulation class F minimize heat and wear, extending service intervals and reducing maintenance costs in continuous-duty pumps. Application: industrial water transfer, chemical handling, and general fluid movement. Feature → Business Impact → Application: 3-phase, direct-on-line starting reduces control system complexity and startup time, delivering quicker uptime in production lines. Application: retrofit projects and new builds where simple, reliable start-ups matter. Feature → Business Impact → Application: Rotating components include 6206 bearings and 6203 NDE ball bearings; the rugged bearing setup supports long life in vibration-prone environments, lowering total cost of ownership in mining, food & beverage, and HVAC pumping. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time improves procurement agility and supply chain resilience, ensuring consistent uptime for maintenance teams and OEMs working on critical fluid systems. Application: facility-wide maintenance planning and Just-In-Time procurement for high-demand pump motors.
