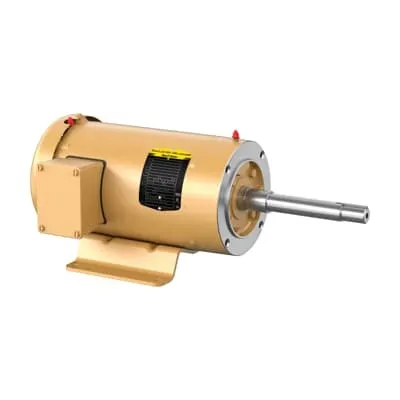

ABB 7BEJPM3610T Pump Motor - IE3 Premium Efficiency
Part Number: 7BEJPM3610T
Quick Summary
ABB 7BEJPM3610T Pump Motor delivers reliable, energy-efficient pumping for close-coupled systems in industrial processes. Many installations struggle with energy waste, excessive heat, and unplanned downtime when selecting pump motors for demanding environments. This motor carries CSA, CSA EEV, and UR certifications, plus IE3 premium efficiency and a TEFC enclosure for rugged operation, with a NEMA Design B profile and direct-on-line starting for straightforward integration. For businesses, the value is clear: lower energy costs, improved uptime, and seamless compatibility with Baldor-Reliance motor families, enabling faster procurement and predictable performance across 3-phase pump applications.
Product Information
Extended Description
7BEJPM3610T ABB: Pump Motor 3 Hp 230 V (EJPM3610T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,182JP,3532M,TE
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM3610T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYMM210: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EJPM3610T
Gross Volume
3590.443 in³
Gross Weight
50 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,182JP,3532M,TEFC,F1
Made To Order
No
Medium Description
Close Coupled Pump, 3 HP, 3600 RPM, Frame Size 182Jp, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJPM3610T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
Close Coupled Pump
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
50 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35MM210Q060G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 182Jp, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: IE3 Premium Efficiency delivers significantly reduced energy consumption per horsepower, translating to noticeable operating cost savings in continuous-duty pumping across water treatment, HVAC, and process systems. Application: ideal for high-volume pumps where energy efficiency directly improves ROI and lowers total cost of ownership. Feature → Business Impact → Application: TEFC enclosure protects internal windings from dust, moisture, and contamination, extending motor life in harsh industrial spaces. Application: suitable for pumps installed in dusty plants, outdoor equipment rooms, or chemically harsh environments, with reliable operation up to 40 °C ambient. Feature → Business Impact → Application: Frame 182JP with C-Face mounting and horizontal orientation provides a compact, plug-and-play fit for close-coupled pumps, reducing installation time and inventory complexity. Application: supports easy retrofits and replacement in legacy Baldor-Reliance pump assemblies, with minimal alignment adjustments. Feature → Business Impact → Application: 3-phase, 60 Hz operation at 230/460 V enables direct connection to standard industrial power distribution, lowering control complexity and installation costs. Application: ideal for new builds and upgrades in process lines, cooling circuits, and irrigation pumps requiring reliable DOL start. Feature → Business Impact → Application: 2-pole, 3450 r/min design with a 1.15 service factor provides robust torque and startup performance, mitigating stalling in load-transient conditions. Application: suitable for centrifugal pumps in continuous-duty applications where steady speed and predictable performance matter. Feature → Business Impact → Application: CSA, CSA EEV, and UR certifications ensure compliance with U.S. and international safety standards, reducing qualification time for regulated projects. Application: fits in regulated facilities, with NEMA design B characteristics and a well-documented exploratory path for audits and inspections. Feature → Business Impact → Application: 50 lb weight, 0.88 in shaft diameter, and 182JP frame support reliable mechanical integration with existing pump assemblies, enabling smoother maintenance planning and stocking of common spare parts.
