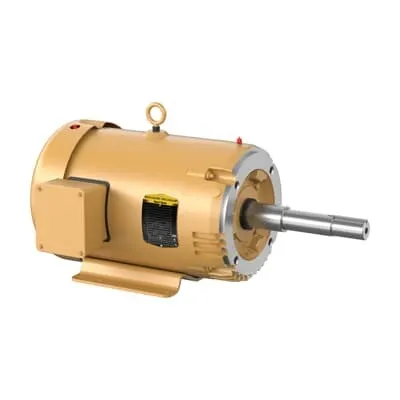

ABB EJPM3711T Close Coupled Pump - CSA/UR/CSA EEV
Part Number: 7BEJPM3711T
Quick Summary
ABB EJPM3711T Close Coupled Pump is a compact, high-efficiency pump for industrial fluid handling and process systems. Engineers often confront space constraints, retrofit downtime, and variable loads that hamper performance. It carries CSA, UR, and CSA EEV certifications to meet North American electrical safety and quality standards. With 60 Hz operation, dual voltage of 230/460 V, and premium efficiency, this unit helps OEMs and maintenance teams reduce energy use and lifecycle costs while simplifying integration into existing lines.
Product Information
Extended Description
7BEJPM3711T ABB: Pump Motor 10 Hp 230 V (EJPM3711T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3490RPM,3PH,60HZ,215JP,3728M,T
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM3711T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYL079: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EJPM3711T
Gross Volume
7192.91 in³
Gross Weight
118 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
10HP,3490RPM,3PH,60HZ,215JP,3728M,TEFC,F
Made To Order
No
Medium Description
Close Coupled Pump, 10 HP, 3600 RPM, Frame Size 215Jp, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJPM3711T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
88 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
118 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
23.2 A | 11.6 A
Rated Efficiency
90.20 %
Rated Speed
3490 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.25 in
Short Description
10 HP, 3600 RPM, Frame Size 215Jp, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The EJPM3711T is a 10 HP, 3-phase motor with a 60 Hz rating and dual voltage 230/460 V, delivering robust performance in compact footprints. This translates to reliable flow control, reduced energy waste, and simpler compatibility with legacy pumps in processing plants and cooling loops. The frame size 215JP and C-Face/foot-mounted horizontal mounting support quick installation and minimal rework on existing systems, accelerating project timelines and reducing downtime. Feature → Business Impact → Application: TEFC enclosure provides dependable protection against dust and moisture in demanding environments, lowering maintenance frequency and extending service life for continuous duty service in manufacturing lines. Feature → Business Impact → Application: Premium efficiency (90.20%) and a strong power factor (88%) cut operating costs and improve power quality in pump-heavy systems, ideal for water treatment and HVAC cooling loops. Feature → Business Impact → Application: Direct On Line starting and a NEMA B design deliver straightforward startup in industrial settings, minimizing control complexity for OEMs, with reduced gear and drive wear in close-coupled configurations. Feature → Business Impact → Application: Stocked at multiple warehouses and a 0-day lead time footprint deliver rapid fulfillment for urgent maintenance and uptime commitments in process industries.
Get a Quick Quote for a ABB 7BEJPM3711T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJPM3711T?
Enquire Now
FAQs
The EJPM3711T provides C-Face flange mounting with a foot-mounted base and horizontal orientation, enabling straightforward integration with existing pumps or drives. This reduces retrofit complexity and shortens commissioning time for OEM installations and maintenance projects.
It features a 10 HP, 3-phase motor operating at 60 Hz with dual voltage 230 V / 460 V. Rated currents are 23.2 A / 11.6 A, and it delivers a premium efficiency rating of 90.2% with a power factor around 0.88, supporting efficient, stable operation in demanding pump systems.
Yes. Designed for continuous operation, it uses a TEFC enclosure and a robust 2-pole configuration with a frame size of 215JP. Its NEMA B design and direct-on-line starting make it ideal for reliable pumping in process water, cooling loops, and other steady-load industrial duties.
The model carries CSA, UR, and CSA EEV certifications, which ensure electrical safety, reliability, and regulatory compliance for control panels and industrial equipment installed in North American facilities.
The pump features robust bearings (6309/6206), a TEFC enclosure, and a durable frame that minimize maintenance downtime. With fast stock availability across warehouses and clear warranty terms, it delivers predictable lifecycle costs and rapid ROI for OEMs and service teams.
