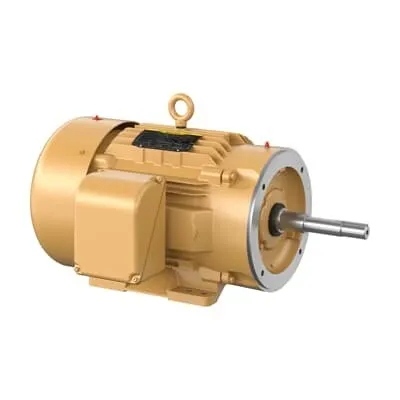

ABB EJPM4104T Pump Motor - 30 HP TEFC 60 Hz
Part Number: 7BEJPM4104T
Quick Summary
ABB EJPM4104T pump motor delivers reliable 30 HP performance for industrial pumping systems. This close-coupled motor combines robust construction with simple installation to minimize downtime in demanding processes. When uptime matters, you need smooth starts, efficient operation, and a motor that accepts standard spare parts. It carries CSA, CSA EEV, and UR certifications, plus IE3 premium efficiency and TEFC enclosure, ensuring performance in harsh environments. Operating on 230/460 V three-phase power, it provides flexible integration for water transfer, cooling loops, and process pumping. Stocked at multiple warehouses with zero-day lead times, this ABB solution reduces total cost of ownership while delivering dependable, long-life operation.
Product Information
Extended Description
7BEJPM4104T ABB: Pump Motor 30 Hp 230 V (EJPM4104T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1770RPM,3PH,60HZ,286JP,1056M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM4104T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYE381: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
EJPM4104T
Gross Volume
18748.226 in³
Gross Weight
452 lb
Horsepower Rating UL/CSA
30.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
30HP,1770RPM,3PH,60HZ,286JP,1056M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 30 HP, 1800 RPM, Frame Size 286Jp, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJPM4104T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
83 %
Product Name
Close Coupled Pump
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
452 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
72 A | 36 A
Rated Efficiency
93.60 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
30 HP, 1800 RPM, Frame Size 286Jp, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 30 HP, three-phase EJPM4104T operates at 1770 r/min with a dual voltage 230/460 V design, enabling seamless substitution in existing pump stations and skid assemblies while reducing panel complexity. This translates to energy-efficient operation and lower wiring costs in water transfer and process cooling applications. Feature → Business Impact → Application: TEFC enclosure provides superior protection against dust and moisture, improving reliability in challenging industrial environments and reducing maintenance interrupts for pumping systems in chemical processing and HVAC loops. Feature → Business Impact → Application: IE3 efficiency combined with a 1.15 service factor delivers tangible energy savings and improved motor life, supporting compliance with energy standards and lowering operating costs in continuous-duty pumping scenarios. Feature → Business Impact → Application: NEMA Design Code A with 3-phase, 4-pole construction and DOL starting streamlines installation on standard motor bases and control panels, accelerating commissioning on new and retrofit pump configurations. Feature → Business Impact → Application: Regreasable lubrication and a robust 286JP frame support extended maintenance intervals and predictable performance for long-running pumps in water treatment and industrial wash-down environments. Feature → Business Impact → Application: Stocked-at-warehouses and 0-day lead times minimize downtime and expedite procurement for mission-critical pumping systems across multiple regions.
