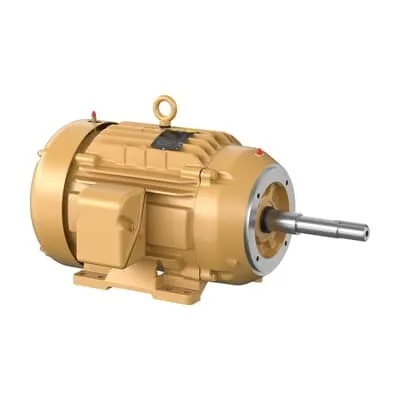

ABB 7BEJPM4106T Pump Motor - TEFC, 60Hz
Part Number: 7BEJPM4106T
Quick Summary
The ABB 7BEJPM4106T pump motor delivers 20 HP with a 230/460 V, 60 Hz three-phase design, ideal for close-coupled pump assemblies in industrial processes and water handling. This model addresses downtime and energy costs by combining rugged construction with high-efficiency operation. It holds CSA, UR, and CSA EEV certifications, aligns with NEMA design guidelines, and offers a TEFC enclosure for harsh environments. Dual voltage capability and a compact footprint support global procurement while reducing spares and integration complexity, delivering measurable business value for maintenance teams and procurement teams alike.
Product Information
Extended Description
7BEJPM4106T ABB: Pump Motor 20 Hp 230 V (EJPM4106T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3520RPM,3PH,60HZ,256JP,0936M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM4106T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYP028
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
EJPM4106T
Gross Volume
14448.906 in³
Gross Weight
229 lb
Horsepower Rating UL/CSA
20.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
20HP,3520RPM,3PH,60HZ,256JP,0936M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 20 HP, 3600 RPM, Frame Size 256Jp, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJPM4106T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
89 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
229 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
46 A | 23 A
Rated Efficiency
91 %
Rated Speed
3520 r/min
Replaced Product ID (OLD)
7B09-0000-2964
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
20 HP, 3600 RPM, Frame Size 256Jp, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEFC enclosure protects internal windings from dust, moisture, and debris, reducing electrical faults and extending motor life in dirty pump pits and outdoor installations. This translates to lower maintenance costs and fewer unplanned downtime events in water treatment and process plants. Feature → Application: 256JP frame with C-Face drive end flange and foot mounting simplifies installation and alignment, enabling faster commissioning and easier retrofits in retrofit projects and new plant setups. Feature → Business Impact → Application: Dual voltage 230/460 V and 60 Hz compatibility supports flexible power distribution in global facilities, enabling standardized spares and simplified electrical room design across multiple sites. Feature → Business Impact → Application: IE3 premium efficiency and a 1.15 service factor provide energy savings and reliable performance under continuous duty, driving lower energy bills and consistent pump performance in continuous-flow systems. Feature → Application: Regreasable bearings (6309/6208) and high-quality ball bearings enhance durability in pumping applications with frequent cycling, reducing replacement costs and extending mean time between failures in industrial water systems. Feature → Business Impact → Application: Direct On Line starting and NEMA design alignment simplify integration with existing control architectures, reducing soft-start requirements and improving initial torque in start-up sequences for centrifugal pumps.
