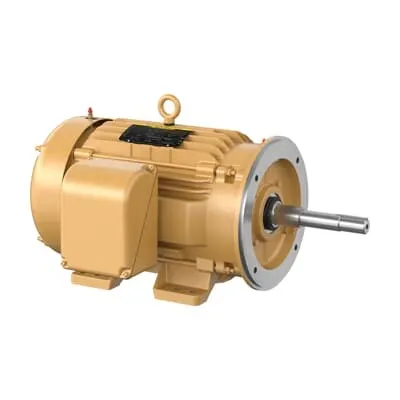

ABB EJPM4107T Pump Motor - TEFC Premium Efficiency
Part Number: 7BEJPM4107T
Quick Summary
ABB EJPM4107T Pump Motor is a 25 HP, close-coupled motor ideal for industrial pump applications. It helps minimize downtime and maintenance costs by delivering robust, reliable operation under continuous duty. The design carries CSA, CSA EEV, and UL/UR certifications to meet stringent safety and regulatory standards while delivering Premium Efficiency. With a 60 Hz, 230/460 V three-phase supply and a 284JP frame, it integrates smoothly into existing pump skids and control panels, enabling straightforward retrofits and predictable long-term performance.
Product Information
Extended Description
7BEJPM4107T ABB: Pump Motor 25 Hp 230 V (EJPM4107T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
44M 2P TEFC HOR 284JP SE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM4107T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
09LYF825: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
EJPM4107T
Gross Volume
16997.25 in³
Gross Weight
349 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
44M 2P TEFC HOR 284JP SE
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 25 HP, 3600 RPM, Frame Size 284Jp, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJPM4107T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
88 %
Product Name
Close Coupled Pump
Product Net Depth / Length
32.75 in
Product Net Height
21.625 in
Product Net Weight
349 lb
Product Net Width
24 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
58 A | 29 A
Rated Efficiency
91.70 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
25 HP, 3600 RPM, Frame Size 284Jp, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
J
Voltage Rating
230 V | 460 V
Direct-on-Line start with 60 Hz operation provides immediate torque for pump priming, reducing startup time and energy spikes. This simplifies drive integration and minimizes the need for soft-start equipment in municipal and industrial pumping stations, delivering faster commissioning and reduced equipment count. Premium Efficiency (approximately 91.70%) translates to measurable energy savings over the motor’s life, supporting lower operating costs and improved sustainability in continuous-duty pumping applications across process plants. The TEFC enclosure protects the winding from dust, moisture, and contaminants, increasing motor longevity in demanding environments such as pump rooms and outdoor installations. The 284JP frame with C-face mounting and foot-mounted configuration enables straightforward installation on standard pump bases and existing control panels, minimizing retrofit risk and downtime. Regreasable lubrication and robust 6312/6208 ball bearings reduce maintenance intervals and extend service intervals for demanding pump duty cycles. With a 1.15 service factor and a 3-phase, dual-voltage 230/460 V supply, the EJPM4107T supports reliable performance under variable loads while maintaining compatibility with common VFDs and programmable logic controllers. Engineers benefit from a proven, single-speed design that avoids the complexity of two-speed motors, while meeting NEMA A design standards and supporting a direct-on-line start method for simple integration into existing automation schemes. The shaft diameter of 1.25 in and the 3600 r/min synchronous speed ensure smooth coupling with standard pump impellers and couplings, reducing custom machining and stock variety. This motor is well-suited for centrifugal pump applications in water treatment, chemical processing, and general industrial fluid handling where uptime, protection, and efficiency are critical.
