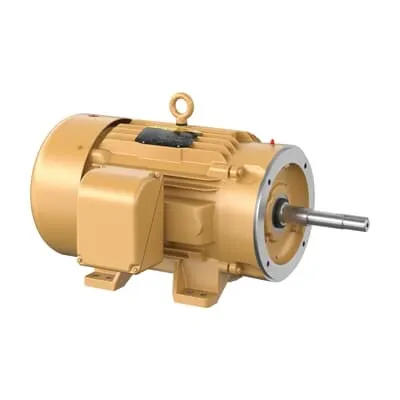

ABB EJPM4109T Pump Motor - 40 HP TEFC 230/460V CSA EEV UR
Part Number: 7BEJPM4109T
Quick Summary
ABB EJPM4109T pump motor provides 40 HP for 3-phase, close-coupled pumping in industrial systems. Many buyers struggle with space-constrained installs, energy waste, and downtime caused by underpowered or ill‑matched motors. This model carries CSA, CSA EEV, and UR certifications, along with a TEFC enclosure and compliant NEMA design, ensuring reliable operation in challenging environments. The combination of premium efficiency (IE3) and rugged construction reduces operating costs, extends service intervals, and simplifies maintenance. With 0-day lead time and stock at multiple warehouses, it supports fast procurement and streamlined project execution while maintaining compliance across U.S. and international sites.
Product Information
Extended Description
7BEJPM4109T ABB: Pump Motor 40 Hp 230 V (EJPM4109T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,3530RPM,3PH,60HZ,324JP,1058M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM4109T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYG862: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
EJPM4109T
Gross Volume
24317.313 in³
Gross Weight
498 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
40HP,3530RPM,3PH,60HZ,324JP,1058M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 40 HP, 3600 RPM, Frame Size 324Jp, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJPM4109T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
90 %
Product Name
Close Coupled Pump
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
498 lb
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
90 A | 45 A
Rated Efficiency
92.40 %
Rated Speed
3530 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
40 HP, 3600 RPM, Frame Size 324Jp, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
230 V | 460 V
Close-coupled pump motor design minimizes the overall footprint, enabling easier installation in tight spaces. This translates to reduced construction time and lower installation costs in retrofit projects and new lines. In practice, engineers deploy it for compact water-handling and chemical-processing pumps where space is at a premium. 40 HP, 3530 rpm at 60 Hz with 230/460 V operation provides a matched power range for common industrial pumps, reducing the need for external drives or transformers and simplifying system integration. TEFC enclosure delivers reliable protection against dust, moisture, and contaminants typical of manufacturing floors and outdoor settings, extending maintenance intervals and reducing downtime. IE3 premium efficiency (92.4% rated) lowers energy consumption in continuous-duty pumping, while a 1.15 service factor offers margin for short overloads during startups. Rugged bearings (6312/6309) with regreasable lubrication enable long life and easier servicing, and the foot-mounted, horizontal orientation with a C-face drive end flange supports fast, alignment-friendly installation on existing bases.
