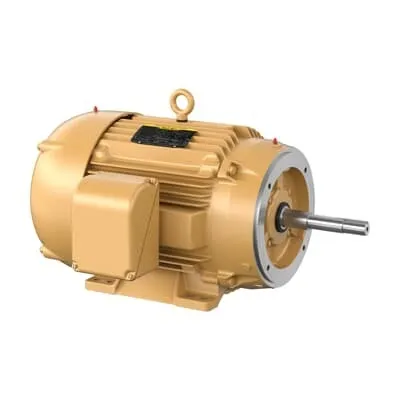

ABB EJPM4114T Pump Motor - 50HP, 60Hz IE3 Premium
Part Number: 7BEJPM4114T
Quick Summary
Pump motor ABB EJPM4114T delivers reliable close-coupled pumping for industrial water and chemical handling systems. OEMs and maintenance teams often struggle with energy waste, inconsistent torque, and downtime from mismatched motors. This model carries CSA, CSA EEV, and UR certifications to support regulatory compliance, along with IE3 premium efficiency and a TEFC enclosure for harsh environments. With 230/460 V, 60 Hz, and a robust 50 HP rating, it enables scalable, low-maintenance operation across demanding applications. The combination of a 326JP frame and durable construction translates to longer service intervals and a lower total cost of ownership, while enabling straightforward installation in retrofit or new-build projects.
Product Information
Extended Description
7BEJPM4114T ABB: Pump Motor 50 Hp 230 V (EJPM4114T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,3540RPM,3PH,60HZ,326JP,1252M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM4114T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
12LYH062: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
EJPM4114T
Gross Volume
24317.313 in³
Gross Weight
604 lb
Horsepower Rating UL/CSA
50.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
50HP,3540RPM,3PH,60HZ,326JP,1252M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 50 HP, 3600 RPM, Frame Size 326Jp, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJPM4114T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326JP
Motor Frame Suffix
JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
89 %
Product Name
Close Coupled Pump
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
604 lb
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
112 A | 56 A
Rated Efficiency
93 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.75 in
Short Description
50 HP, 3600 RPM, Frame Size 326Jp, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Premium IE3 efficiency reduces energy consumption by minimizing I²R losses, delivering measurable operating cost savings in continuous pumping duties for water treatment and processing lines. This translates to lower utility bills and improved ROI for pumping systems with high run hours. Feature → Application → Business Impact: TEFC enclosure provides rugged protection against dust and moisture, enabling dependable operation in chemical processing and plant basements where exposure is common; this reduces unplanned downtime and extends motor life. Feature → Business Impact → Application: 50 HP, 3540 r/min, 3‑phase, 60 Hz configuration matches typical close-coupled pump assemblies, ensuring optimal torque and flow performance for municipal water transfer, boiler feed, and irrigation systems with minimal coupling complexity. Feature → Application → Business Impact: Regreasable lubrication and a rugged frame (326JP) support long maintenance intervals; technicians gain predictable service windows and reduced maintenance costs, especially in remote installations. Feature → Business Impact → Application: C‑Face drive end and foot mounting ease retrofits and new installations alike; compatibility with standard Baldor-Reliance components simplifies integration with existing drives, switchgear, and control panels while minimizing downtime during mechanical changes.
