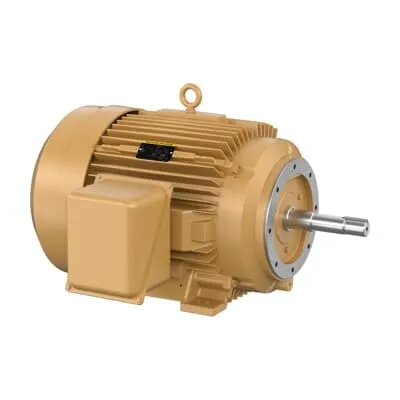

ABB 7BEJPM4314T Pump Motor - Premium Efficiency (NEMA 12-12)
Part Number: 7BEJPM4314T
Quick Summary
ABB 7BEJPM4314T Pump Motor delivers 60 HP 230 V performance for close-coupled pumping in industrial systems. In many plants, energy waste and unexpected downtime stem from mismatched motor selection, undersized drives, or unreliable enclosure protection. This model aligns with Premium Efficiency (NEMA) standards and employs a TEFC enclosure, complemented by a NEMA Design B electrical profile, to deliver consistent torque and reliability across demanding processes. It supports 3-phase operation at 60 Hz, with a frame size 364JP and C-Face/foot-mount compatibility, enabling straightforward installation and retrofit. By combining robust construction with precise performance, it helps reduce energy costs, lower maintenance, and extend motor life in critical pumping applications.
Product Information
Extended Description
7BEJPM4314T ABB: Pump Motor 60 Hp 230 V (EJPM4314T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1780RPM,3PH,60HZ,364JP,TEFC,F1
Ambient Temperature
40 °C
Bearing
65BC03J30X, Ball
Bearing NDE
65BC03J30X
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJPM4314T
Certification Agency
CCSAUSEEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
EJPM4314T
Gross Volume
40919 in³
Gross Weight
412.77 kg
Insulation Class
F
Invoice Description
60HP,1780RPM,3PH,60HZ,364JP,TEFC,F1
Made To Order
No
Medium Description
Close Coupled Pump, 60 HP, 1800 RPM, Frame Size 364Jp, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJPM4314T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364JP
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
87 %
Product Name
Close Coupled Pump
Product Net Depth / Length
41.5 in
Product Net Height
29 in
Product Net Weight
412.77 kg
Product Net Width
34 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
136 A | 68 A
Rated Efficiency
95 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
60 HP, 1800 RPM, Frame Size 364Jp, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 60 HP, 1780 r/min, 3-phase 230/460 V rating provides strong, versatile performance across common industrial pumps, reducing inventory complexity while enabling reliable startup in varied supply voltages. This translates to lower operating costs and easier spec matching for water systems, chemical processing, and HVAC pumping. Feature → Business Impact → Application: TEFC enclosure and a frame size 364JP offer rugged protection in harsh factory environments, minimizing weather- or dust-related downtime and extending service life. This is ideal for close-coupled pump configurations in wastewater treatment or remote process lines where enclosure integrity matters. Feature → Business Impact → Application: Premium Efficiency (NEMA) design and 95% rated efficiency deliver meaningful energy savings over the motor’s life, lowering total cost of ownership and supporting sustainability targets in industrial facilities. Feature → Business Impact → Application: Direct-on-line starting and 60 Hz operation simplify integration with standard electrical rooms and motor controls, reducing installation time while demanding careful coordination with drive systems in high-load scenarios. Feature → Business Impact → Application: Stocked-at warehouses globally and 0-day lead time enable rapid deployment, minimizing downtime on critical lines and providing dependable supply for maintenance+replacement programs in manufacturing. Feature → Business Impact → Application: 1.63 in shaft diameter and 364JP frame support durable coupling with common pump flanges, easing retrofit projects and ensuring consistent alignment in horizontal, foot-mounted setups for water pumps, HVAC, or industrial fluid handling.
