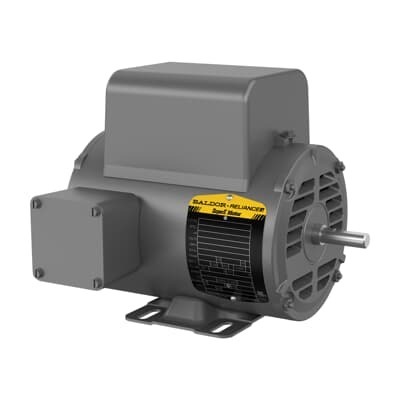

ABB EL11206 GP Motor - UR Energy Certified, 1PH 115V ODP
Part Number: 7BEL11206
Quick Summary
ABB EL11206 GP Motor is a compact single-phase open motor for general purpose drives in industrial equipment. It helps projects avoid downtime from slow lead times and unavailable matches by offering quick availability and a standard electrical footprint. With NEMA design, an Open Drip Proof (ODP) enclosure, and UR Energy certification, this motor meets reliability and safety standards for regulated environments. The 1PH 115/230 V operation and 60 Hz frequency provide versatile installation for space-constrained panels, while the frame size 48, horizontal mounting, and 1740 rpm rating support efficient, scalable solutions for conveyors, pumps, and general machinery in manufacturing and process industries.
Product Information
Extended Description
7BEL11206 ABB: General Purpose Motor 0.33 Hp 115 V (EL11206)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1740RPM,1PH,60HZ,48,3418LC,OD
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EL11206
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYF351: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
ODP
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
EL11206
Gross Volume
2110.969 inÂł
Gross Weight
27 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
.33HP,1740RPM,1PH,60HZ,48,3418LC,ODP,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 0.33 HP, 1800 RPM, Frame Size 48, Standard Mounting, 1 Phase, ODP Enclosure, 115/230 V, 60 Hz (EL11206)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
48
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
85 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
27 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.4 A | 1.7 A
Rated Efficiency
72.40 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.35
Shaft Diameter
0.5 in
Short Description
0.33 HP, 1800 RPM, Frame Size 48, Standard, 1 PH, ODP, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature → 1PH 115/230 V operation at 60 Hz with direct-on-line starting. Business Impact → Simplifies electrical integration, reduces need for soft starters, and shortens panel wiring and commissioning. Application → Ideal for small conveyors, pumps, and fans in light-to-medium automation lines. Feature → Frame size 48 with an Open Drip Proof enclosure (ODP) and 1740 rpm. Business Impact → Maintains effective cooling and accessibility in open environments, enabling reliable operation in standard factory aisles. Application → Suitable for general purpose open-motor installations in manufacturing cells. Feature → Foot Mounted, Horizontal (F1) mounting and 27 lb mass. Business Impact → Easy, fast installation with minimal bracket fabrication and space planning. Application → Panel builders and machine integrators benefit from quick deployment in space-constrained gear trains. Feature → 0.33 HP output with 4 poles and rated speed of 1740 r/min (synchronous 1800 r/min). Business Impact → Consistent torque for modest-load applications, predictable performance, and reduced drive complexity. Application → Conveyor feeders, pumps, and air handling units in compact footprints. Feature → Insulation Class F, Bearings 6203 Ball, Service Factor 1.35. Business Impact → Enhanced durability, longer service life, and resilience in typical industrial temperatures up to 40 °C. Application → Continuous-duty applications with dependable life-cycle costs. Feature → Voltage rating 115 V / 230 V and 60 Hz operation. Business Impact → Flexible electrical sourcing and simplified inventory with dual-voltage capability. Application → General purpose machinery across varying regional power standards.
