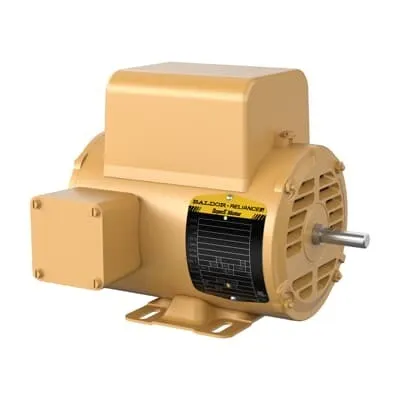

ABB 7BEL11209M General Purpose Motor - UR Energy Certified
Part Number: 7BEL11209M
Quick Summary
ABB 7BEL11209M General Purpose Motor is a compact, single-phase motor designed for open-frame applications needing reliable performance. With 0.5 horsepower and 115/230 V operation at 60 Hz, it suits conveyors, pumps, and fans across light-industrial environments. This motor reduces downtime by aligning with standard mounting and stock-availability across multiple warehouses, enabling faster replacements and predictable procurement. Built on ABB’s heritage of industrial quality, it integrates with common control panels and meets regulatory expectations for UR Energy certification and NEMA design compatibility. For buyers, the combination of open enclosure design, frame size 48, and documented specifications translates into safer specs, easier sourcing, and lower total cost of ownership.
Product Information
Extended Description
7BEL11209M ABB: General Purpose Motor 0.5 Hp 115 V (EL11209M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1725RPM,1PH,60HZ,48,3424LC,OPE
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EL11209M
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYF868: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
EL11209M
Gross Volume
2110.969 inÂł
Gross Weight
32 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
.5HP,1725RPM,1PH,60HZ,48,3424LC,OPEN,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 0.5 HP, 1800 RPM, Frame Size 48, Standard Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (EL11209M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
48
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
98 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
32 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.4 A | 2.2 A
Rated Efficiency
76.20 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.5 in
Short Description
0.5 HP, 1800 RPM, Frame Size 48, Standard, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 0.5 Hp single-phase design at 60 Hz delivers straightforward integration with existing 115/230 V power sources, reducing wiring complexity and installation time for new lines. This translates to measurable efficiency gains in small conveyors and pump assemblies, with faster commissioning and lower upfront costs. Feature → Business Impact → Application: Frame size 48 and OPEN enclosure enable versatile mounting in compact equipment, boosting serviceability and replacement speed in maintenance-heavy environments. Application includes general purpose machinery, fans, and small pumps where open-frame access simplifies upkeep. Feature → Business Impact → Application: NEMA Design Code N and 1725 rpm-rated speed provide predictable torque curves for belt-driven loads, improving belt life and reducing startup transient stress. Application spans packaging, material handling, and compatible automation platforms. Feature → Business Impact → Application: 115/230 V dual voltage and 1-phase operation ease stock management and spare part consistency across facilities, reducing procurement risk and improving uptime. Feature → Business Impact → Application: UR Energy certification and United States origin establish compliance confidence for regulated environments, easing audit trails and supplier qualification. This supports long-term maintenance planning and guaranteed performance in ongoing operations.
