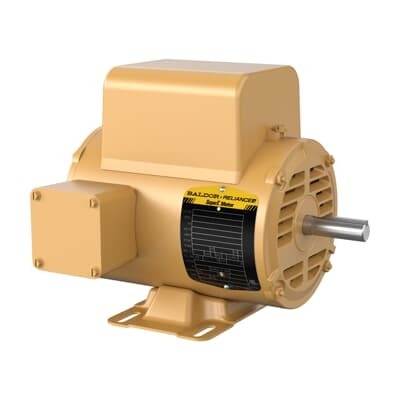

ABB 7BEL11301M General Purpose Motor - 1PH 60 Hz Open Enclosure
Part Number: 7BEL11301M
Quick Summary
General Purpose Motor 7BEL11301M delivers reliable power for single-phase drives in compact equipment. OEMs often struggle with limited space, inconsistent uptime, and fast-changing control needs; this model addresses those challenges with a versatile footprint and straightforward installation. It aligns with NEMA design standards and UR energy certification, supporting compliant, energy-conscious operations. Designed for global availability, it combines a compact 56-frame footprint with 1-ph, 60 Hz performance to streamline procurement and maintenance. With open enclosure, foot-mounted mounting, and 0.33 HP output, it delivers practical business value for daily industrial tasks while enabling seamless integration into existing control architectures.
Product Information
Extended Description
7BEL11301M ABB: General Purpose Motor 0.33 Hp 115 V (EL11301M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1740RPM,1PH,60HZ,56,3418LC,OP
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EL11301M
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYF353: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
EL11301M
Gross Volume
2110.969 inÂł
Gross Weight
27 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
.33HP,1740RPM,1PH,60HZ,56,3418LC,OPEN,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 0.33 HP, 1800 RPM, Frame Size 56, Standard Mounting, 1 Phase, OPEN Enclosure, 115/208-230 V, 60 Hz (EL1130
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
85 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
27 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.4 A | 1.8 A | 1.7 A
Rated Efficiency
72.40 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.35
Shaft Diameter
0.63 in
Short Description
0.33 HP, 1800 RPM, Frame Size 56, Standard, 1 PH, OPEN, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: Versatile voltage and compact form. Business Impact: Reduces wiring variants and simplifies stocking for 115 V and 230 V systems, lowering total cost of ownership. Application: Suitable for 60 Hz single-phase lines powering small conveyors or pumps in light-industrial environments. Feature: Open enclosure, foot-mounted, 56-frame. Business Impact: Eases installation, cooling, and serviceability in tight spaces, enabling faster commissioning. Application: Ideal for open-drive setups in mini-mills, packaging lines, or machine shops. Feature: 1740 r/min, 4P, 1PH. Business Impact: Stable speed under typical loads with straightforward control logic, reducing drive complexity. Application: Common in fans, pumps, and small automation units requiring predictable performance. Feature: Insulation Class F and ambient 40 °C. Business Impact: Higher temperature tolerance minimizes thermal faults, extending service life; supports global environments. Application: Reliable operation in standard manufacturing floors and assembly lines. Feature: 6203 ball bearings and direct-on-line starting. Business Impact: Enhanced durability with reduced maintenance and simple startup sequences, lowering downtime. Application: Industrial environments where rapid startup and longevity matter. Feature: NEMA design adherence and UR energy certification. Business Impact: Compliance with industry standards and efficiency labeling, simplifying audits and procurement. Application: Suitable for regulated facilities and energy-conscious projects. Feature: Stocked at multiple warehouses; 0 day lead time. Business Impact: Immediate availability reduces project delays and expedites production schedules. Application: Critical for just-in-time manufacturing, spare-parts planning, and global deployments.
