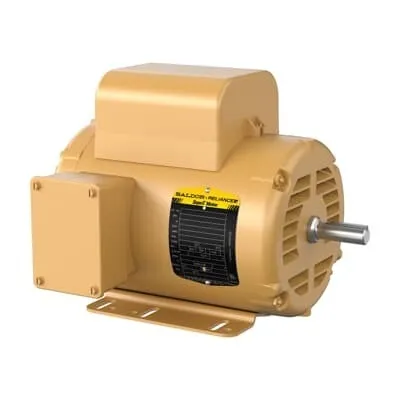

ABB 7BEL11317A General Purpose Motor - 2HP 1PH 60Hz
Part Number: 7BEL11317A
Quick Summary
The ABB General Purpose Motor 7BEL11317A delivers reliable 2 HP performance for single-phase open-enclosure applications. Engineers often face stock reliability issues, long lead times, and ambiguous warranty terms; this unit ships with 0 day lead time from multiple warehouses to keep production moving. It is aligned with NEMA design standards and UR Energy certification, delivering dependable operation in demanding environments. With 115/230 V operation and 60 Hz service in a compact 56H frame, it integrates smoothly into OEM lines, service fleets, and maintenance shops. Selecting this motor translates into faster procurement, easier installation, and consistent motor efficiency across varied US-based industrial setups.
Product Information
Extended Description
7BEL11317A ABB: General Purpose Motor 2 Hp 115 V (EL11317A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3470RPM,1PH,60HZ,56H,3540LC,OPE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EL11317A
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE2890: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
EL11317A
Gross Volume
3496.049 in³
Gross Weight
66 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
2HP,3470RPM,1PH,60HZ,56H,3540LC,OPEN,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 2 HP, 3600 RPM, Frame Size 56H, Standard Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (EL11317A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56H
Motor Frame Suffix
H
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
99 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
66 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
15.6 A | 7.8 A
Rated Efficiency
82.90 %
Rated Speed
3470 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
2 HP, 3600 RPM, Frame Size 56H, Standard, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: 2 HP, 1PH, 60 Hz open-frame design. Business Impact: provides standard single-phase power compatibility and broad application reach, reducing custom drive requirements. Application: ideal for conveyors, fans, pumps, and other lightweight open-enclosure machinery. The result is simpler electrical integration and lower total installed cost. Feature: 56H frame, foot-mounted with horizontal mounting (F1). Business Impact: retrofit-friendly and compatible with common OEM enclosures, enabling quick swaps and minimal alignment adjustments. Application: replacement motors in existing lines and new equipment assemblies benefit from fast installation. Feature: Rated speed 3470 r/min with synchronous 3600 r/min, efficiency 82.9%, and power factor ≈ 0.99. Business Impact: improved energy efficiency and electrical performance translate to lower running costs and reduced utility penalties. Application: continuous-duty operation in process lines and air handling systems. Feature: Open enclosure, Insulation Class B, bearings 6205 | Ball, shaft diameter 0.63 in. Business Impact: robust, maintenance-friendly design that tolerates typical factory environments while delivering long bearing life. Application: reliable daily operation in hot and cool US facilities with standard service intervals. Feature: Voltage rating 115 V / 230 V, 1 phase, 60 Hz, with Direct On Line starting. Business Impact: flexible electrical sourcing and straightforward startup without soft starters for compatible loads. Application: OEM equipment, service fleets, and repair shops seeking predictable start-up and minimal spare parts.Feature: Certifications and stock position (NEMA design, UR Energy, stock across multiple warehouses). Business Impact: regulatory alignment and procurement resilience reduce risk and downtime. Application: OEM assemblies and field service teams requiring rapid fulfillment and compliant components.
Get a Quick Quote for a ABB 7BEL11317A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEL11317A?
Enquire Now
FAQs
Yes. This motor operates on 115 V or 230 V single-phase power at 60 Hz and uses a foot-mounted, horizontal F1 mounting within the 56H frame, making it suitable for direct replacement in many existing open-frame installations.
Key specs include 2 HP, 3470 r/min nominal speed (3600 r/min synchronous), 1 phase, 60 Hz, 115/230 V, efficiency around 82.9%, and a 0.63 in shaft diameter. It runs with Direct On Line starting for straightforward startup.
Ideal for continuous-duty open-enclosure applications such as conveyors, fans, and pumps in OEM equipment, service fleets, and maintenance shops where quick procurement and consistent performance are critical.
The motor aligns with NEMA design standards and UR Energy certification, which supports regulatory compliance and reliability in US-based facilities.
Warranty terms require returns for warranty service, and the product is stocked at multiple warehouses with 0-day lead time, reducing downtime and inventory risks while accelerating project timelines.
