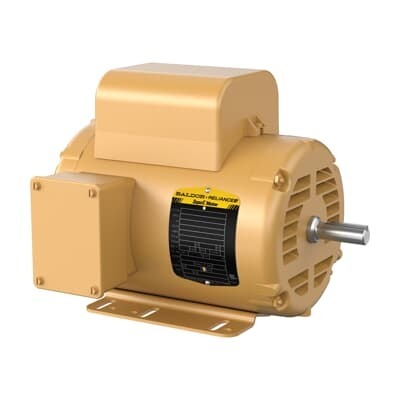

ABB 7BEL11319M General Purpose Motor - 1PH OPEN, 56H Frame
Part Number: 7BEL11319M
Quick Summary
ABB 7BEL11319M General Purpose Motor delivers reliable single-phase drive for general industrial equipment such as conveyors and fans. In practice, engineers face mismatches in voltage, enclosure, and frame size when upgrading or scaling automation lines. This model is CSA/UR-certified, adheres to NEMA design standards, and uses an open 56H frame with a 1PH, 60 Hz, 115/230 V rating to simplify integration. Its compact footprint and straightforward installation support rapid deployment across facilities, reducing wiring variants and inventory while boosting uptime. With dual-voltage operation and proven Baldor-Reliance lineage, it delivers predictable performance across diverse plant environments.
Product Information
Extended Description
7BEL11319M ABB: General Purpose Motor 1.5 Hp 115 V (EL11319M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1755RPM,1PH,60HZ,56H,3540LC,O
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EL11319M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE007: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
EL11319M
Gross Volume
3496.049 inÂł
Gross Weight
59 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
1.5HP,1755RPM,1PH,60HZ,56H,3540LC,OPEN,F
Made To Order
No
Medium Description
General Purpose 1PH Open, 1.5 HP, 1800 RPM, Frame Size 56H, Standard Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (EL11319M)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56H
Motor Frame Suffix
H
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
93 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
59 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.4 A | 6.2 A
Rated Efficiency
83.80 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35E007K254G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56H, Standard, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: Dual voltage rating (115 V | 230 V) enables flexible installation across multiple sites. Business Impact: Reduces inventory complexity and wiring errors, lowering project lead times. Application: North American facilities with mixed voltage supplies can standardize on a single motor SKU. Feature: 1.5 HP power at 1725 rpm provides solid torque for light to medium-duty applications. Business Impact: Improves drive response and lifting capacity while maintaining efficiency. Application: Conveyors, small pumps, and fans in open-frame equipment. Feature: Open enclosure (OPEN) with 56H frame and foot mounting. Business Impact: Simplifies mounting and reduces enclosure space, cutting installation costs and time. Application: Replacements in retrofit and new-build projects where space constraints exist. Feature: High power factor (0.93) and efficiency (83.8%) deliver energy savings and compliant performance. Business Impact: Lower energy bills and better alignment with energy-management programs. Application: Continuous-duty or frequent-start operations in manufacturing lines. Feature: Direct on line starting and NEMA design code L support with CSA/UR certification. Business Impact: Easy integration with existing systems and regulatory assurance, reducing commissioning risk. Application: Regulatory-compliant open-frame motors for industrial conveyors, fans, and pumps. Industry context: The motor’s 60 Hz, single-phase design and 56H frame align with common industrial standards, facilitating quick procurement from multiple warehouses and minimizing downtime during equipment upgrades. This translates into measurable ROI through faster project delivery, reduced spare-part variety, and improved maintenance planning.
Get a Quick Quote for a ABB 7BEL11319M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEL11319M?
Enquire Now
FAQs
Yes. This motor is designed for 115/230 V dual voltage operation at 60 Hz and uses a 56H frame with a foot-mounted, horizontal orientation (F1). It is ideal for retrofit and new installations in conveyors, pumps, or fans where an open-frame design reduces enclosure requirements and simplifies base mounting.
The motor delivers 1.5 HP at 1725 r/min (Synchronous ~1800 r/min) with a power factor around 0.93 and efficiency of 83.8%. It is a 1-phase, 60 Hz device with a direct-on-line start capability, enabling straightforward integration into existing electrical systems without soft-start hardware.
Absolutely. The 56H open-frame design, foot-mounted mounting, NEMA design code L, and direct-on-line starting suit general purpose drives like conveyors and small pumps. CSA/UR certification adds regulatory confidence for open-frame equipment operating in typical plant environments.
The ABB 7BEL11319M carries CSA/UR certification and adheres to NEMA standards. It is designed for United States origin and supports open-frame, with a 56H frame specification and 1PH operation, making it suitable for compliant procurement in North American facilities.
The motor’s simple, open-frame construction reduces enclosure-related maintenance and allows quick replacement. With stock available across multiple warehouses and zero lead time indicated in supplier data, procurement is fast, downtime is minimized, and total cost of ownership improves through reduced inventory complexity.
