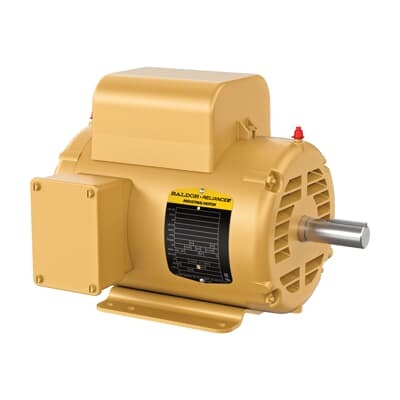

ABB 7BEL1319T General Purpose Motor - 1PH 60Hz CSA/UR
Part Number: 7BEL1319T
Quick Summary
General Purpose Motor 7BEL1319T powers single-phase open-frame drives in light industrial applications such as conveyors. Typical procurement challenges—long lead times and compatibility concerns—are addressed by stock availability across multiple regional warehouses. The motor carries CSA and UR certifications with NEMA alignment, enhancing safety compliance and installer confidence. With open enclosure and 145T frame, the design supports easy mounting, while strong efficiency and service factor deliver tangible operating savings. This combination helps project teams meet uptime targets and reduces downtime during ramp-ups. Secondary keywords like 'single-phase motor' and 'open motor' appear naturally, supporting broader searches while emphasizing business value. Stocked at multiple warehouses reduces procurement risk and accelerates project timelines.
Product Information
Extended Description
7BEL1319T ABB: General Purpose Motor 1.5 Hp 115 V (EL1319T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1725RPM,1PH,60HZ,145T,3536LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EL1319T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYEE002: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EL1319T
Gross Volume
2110.969 inÂł
Gross Weight
54 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,1725RPM,1PH,60HZ,145T,3536LC,OPEN
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 1.5 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 1 Phase, OPEN Enclosure, 115/208-230 V, 60 Hz (EL131
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
97 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
54 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
11.9 A | 6.7 A | 6.4 A
Rated Efficiency
83.80 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35EE002G129
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145T, Standard, 1 PH, OPEN, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
K
Voltage Rating
115 V | 208 V | 230 V
Feature: 1PH 115 V/60 Hz compatibility and 208-230 V tolerance. Business Impact: Simplifies control wiring, reduces panel diversity, and lowers electrical procurement costs. Application: Ideal for conveyors, pumps, and fans in light industrial setups. Feature: 1.5 HP, 1725 RPM output. Business Impact: Delivers adequate torque for general-purpose loads with predictable startup characteristics. Application: Suitable for small machinery, fans, and positive displacement pumps. Feature: OPEN enclosure with 145T frame and foot mounting. Business Impact: Improves cooling, enables straightforward installation, and simplifies maintenance. Application: Horizontal mounting in open plant environments. Feature: Efficiency 83.80% and Power Factor 97%. Business Impact: Reduces energy costs and minimizes electrical line losses, supporting compliance with energy policies. Application: Continuous-duty operations in manufacturing lines. Feature: Regreasable bearings (6205/6203) and shaft 0.88 in diameter. Business Impact: Extends service life, lowers maintenance costs, and reduces unplanned downtime. Application: Long-term reliability for open-plant motors. Feature: Lead time 0 day and multiple stock locations. Business Impact: Accelerates procurement cycles, lowers project risk, and supports rapid ramp-up. Application: Fast deployment across distributed sites. Feature: Direct On Line starting and 4-pole design (1725 r/min, 60 Hz). Business Impact: Simplifies start-up and protects electrical infrastructure from high inrush; improves control compatibility. Application: Line-start motors in open environments. Industry context: As a 1-phase, open-frame motor with NEMA-style design and CSA/UR certification, 7BEL1319T aligns with North American utility and OEM practices, enabling seamless integration into panel builds and machine retrofits while delivering predictable performance in conveyors, fans, and small pumps.
