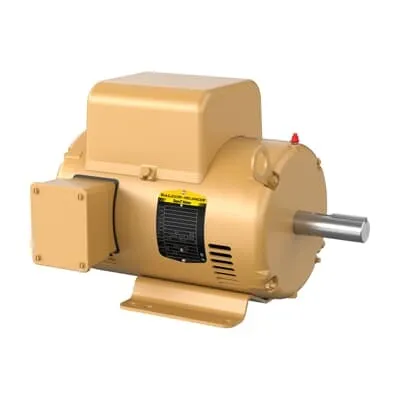

ABB 7BEL1405T General Purpose Motor - 2HP, 115V OPSB
Part Number: 7BEL1405T
Quick Summary
ABB 7BEL1405T General Purpose Motor is a single-phase, open-frame motor designed for light industrial drives and pumps. This model delivers 2 HP at 60 Hz with a 115 V supply, making it ideal for compact, budget-conscious installations. Engineers and procurement teams struggle with downtime and long lead times for replacement motors. It carries CSA EEV, UR, and NEMA Premium certifications to ensure compliance, reliability, and energy efficiency. For procurement and maintenance teams, stock availability across multiple warehouses reduces lead times, while its 182T frame and OPSB enclosure streamline mounting and protection in demanding environments. Use this motor to simplify upgrades and standardize your single-phase motor fleet.
Product Information
Extended Description
7BEL1405T ABB: General Purpose Motor 2 Hp 115 V (EL1405T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1740RPM,1PH,60HZ,182T,3623LC,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EL1405T
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYG967: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EL1405T
Gross Volume
3496.049 in³
Gross Weight
65 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1740RPM,1PH,60HZ,182T,3623LC,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 2 HP, 1800 RPM, Frame Size 182T, Standard Mounting, 1 Phase, OPSB Enclosure, 115/230 V, 60 Hz (EL1405T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
90 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
65 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.6 A | 8.8 A
Rated Efficiency
82.50 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
2 HP, 1800 RPM, Frame Size 182T, Standard, 1 PH, OPSB, 115/230 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 1PH, 60 Hz operation with 115/230 V input simplifies power sourcing and reduces wiring complexity, allowing faster commissioning for conveyors, pumps, and fans. This translates into lower installation costs and quicker ROI for light-industrial automation projects. Feature → Business Impact → Application: The OPSB enclosure provides robust protection in dusty or moderate-industrial environments, improving uptime and reducing maintenance intervals for belt-driven equipment. Feature → Business Impact → Application: SSH 182T frame and 1.13 in shaft diameter ensure broad compatibility with common drive systems and couplings, enabling straightforward retrofits and plug-and-play upgrades. Feature → Business Impact → Application: Regreasable lubrication plus a 60-minute duty rating supports longer service intervals and easier maintenance planning in remote facilities. Feature → Business Impact → Application: 2 HP, 1740 r/min output with a 1.15 service factor delivers reliable torque during peak loads, helping maintain production continuity in pumps and fans. Feature → Business Impact → Application: Stocked at multiple warehouses (US and international) shortens lead times and reduces project delays, especially for standard replacements in manufacturing lines. Feature → Business Impact → Application: Direct-on-line starting and no brake requirement simplify integration with existing control panels and drive logic, reducing engineering effort and spare-part inventory.
Get a Quick Quote for a ABB 7BEL1405T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEL1405T?
Enquire Now
FAQs
Yes. The 7BEL1405T is a 1-phase, 60 Hz motor rated for 115 V (and 230 V), with an OPSB enclosure for protection in typical open and dusty industrial environments. It is foot-mounted on a 182T frame for straightforward mounting and integration with common conveyor and pump assemblies.
Key specs include 2 HP output, 1740 rpm nominal speed, 182T frame size, 1 phase, 60 Hz frequency, and a 1.15 service factor. It uses a 1.13 in shaft diameter and is designed for direct-on-line starting with no brake.
Ideal for light-to-moderate loads on conveyors, fans, and pumps where a compact, reliable single-phase motor is needed. Its open construction facilitates cooling and maintenance, while the OPSB enclosure protects against environmental exposure common in general automation tasks.
The motor carries CSA EEV, NEMA Premium, and UR certifications, supporting electrical safety, energy efficiency, and compliance for many regional and industry standards. These certifications help simplify procurement for regulated environments.
Regreasable lubrication extends service intervals, reducing maintenance labor. The 60-minute duty rating and robust frame support reliable operation under continuous load. Stock availability across warehouses minimizes downtime and accelerates project timelines, improving overall return on investment.
