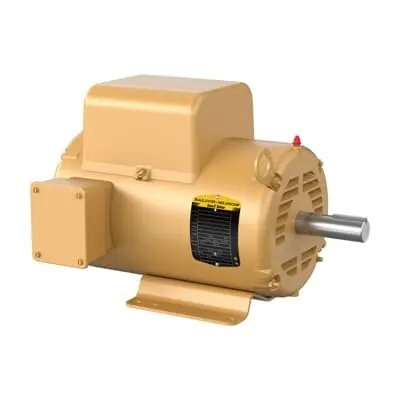

ABB 7BEL1409T General Purpose Motor - CSA/UR, NEMA
Part Number: 7BEL1409T
Quick Summary
ABB 7BEL1409T General Purpose Motor is a 5 HP, 230 V single-phase unit designed for open-enclosure duty in light industrial environments. This compact, easy-to-install motor streamlines retrofits and new builds alike, reducing integration time on conveyors, pumps, and fans. It carries CSA, CSA EEV, UR, and NEMA Premium certifications, delivering compliant performance with proven reliability. With a 184T frame, 60 Hz operation, and a robust foot-mounted design, it fits standard drive systems while helping you minimize total cost of ownership. The combination of direct-on-line starting and open enclosure simplifies installation, service, and spare-parts planning for busy maintenance teams.
Product Information
Extended Description
7BEL1409T ABB: General Purpose Motor 5 Hp 230 V (EL1409T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3450RPM,1PH,60HZ,184T,3634LC,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EL1409T
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYE002: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EL1409T
Gross Volume
5274.135 inÂł
Gross Weight
79 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,3450RPM,1PH,60HZ,184T,3634LC,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Open, 5 HP, 3600 RPM, Frame Size 184T, Standard Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (EL1409T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
97 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
79 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
20 A
Rated Efficiency
81.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B36E002S116E7
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 3600 RPM, Frame Size 184T, Standard, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
F
Voltage Rating
230 V
Feature: 5 HP, 230 V, 1PH, 60 Hz with 184T frame. Business Impact: Delivers sufficient torque for light-industrial loads while leveraging common voltage and frame standards to reduce inventory. Application: Ideal for conveyors and small pumps in open-space layouts. Feature: Direct-on-line starting. Business Impact: Eliminates soft-starter complexity and reduces electrical infrastructure costs, accelerating startup in new installations. Application: Packaging lines and material-handling systems. Feature: Open enclosure and foot-mounted orientation (Horizontal, F1). Business Impact: Maximizes cooling and simplifies mounting, service access, and vibration management. Application: Retrofit projects and space-constrained installations. Feature: Efficiency 81.50% and power factor 97%. Business Impact: Lower energy consumption and improved power quality, contributing to long-term operating expense reductions. Application: Continuous-duty fans and pumps with predictable energy use. Feature: Regreasable bearings (6206, with 6205 NDE) and 60-minute duty time. Business Impact: Extends bearing life and reduces unplanned downtime, supporting higher uptime targets. Application: High-cycle conveyors and continuous-process fans. Feature: Service Factor 1.15 and 3450 r/min rated speed (3600 r/min synchronous). Business Impact: Overload tolerance and reliable performance under transient loads, reducing nuisance trips. Application: General purpose drive systems requiring margin for load variations. The combination of these specifications enables compatibility with existing Baldor- and ABB-driven systems, supports straightforward installation across multiple warehouses, and aligns with long-term maintenance strategies. Industry context, such as open-mount, standard frame size, and commonly sourced 1-phase motors, helps with spare-parts planning and supplier consolidation—benefits that resonate with procurement teams seeking predictable cost and performance.
