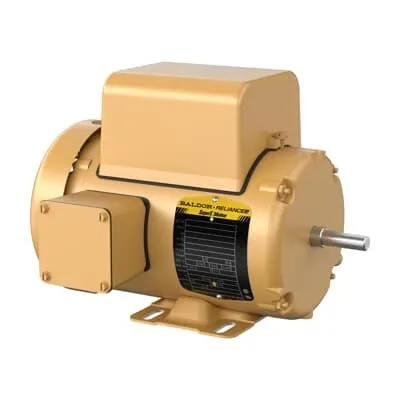

ABB 7BEL3405 General Purpose Motor - TEFC 1PH 60Hz
Part Number: 7BEL3405
Quick Summary
ABB 7BEL3405 General Purpose Motor is a compact 0.33 HP single-phase drive designed for small equipment, conveyors, and pumps. This motor helps OEMs decrease control complexity and inventory by offering a versatile 115 V option, with compatible 208–230 V variants for broader regional use. A common pain point is downtime from mismatched components; direct-on-line starting and a robust TEFC enclosure minimize field troubleshooting and moisture exposure. The design carries certifications including CSA, UR, and NEMA Premium, aligning with regulatory and reliability expectations in sensitive environments. By delivering a 1.35 service factor, regreasable bearings, and a standard frame size 48, this motor supports predictable performance, easier maintenance, and lower total cost of ownership across general-purpose applications.
Product Information
Extended Description
7BEL3405 ABB: General Purpose Motor 0.33 Hp 115 V (EL3405)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,3450RPM,1PH,60HZ,48,3420LC,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EL3405
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYG374: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
EL3405
Gross Volume
2110.969 in³
Gross Weight
27 lb
Horsepower Rating UL/CSA
0.330 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.33HP,3450RPM,1PH,60HZ,48,3420LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 0.33 HP, 3600 RPM, Frame Size 48, Standard Mounting, 1 Phase, TEFC Enclosure, 115/208-230 V, 60 Hz (EL
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
48
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
96 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
27 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A | 1.7 A | 1.6 A
Rated Efficiency
72 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.35
Service Factor Percentage
1.35 %
Shaft Diameter
0.5 in
Short Description
0.33 HP, 3600 RPM, Frame Size 48, Standard, 1 PH, TEFC, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
L
Voltage Rating
115 V | 208 V | 230 V
Feature: TEFC enclosure and a 48-frame, foot-mounted design protect the motor in dusty or wet environments while simplifying installation. Business Impact: Reduces maintenance intervals and bearings wear, delivering higher uptime on packaging lines and lightweight conveyors. Application: Ideal for general-purpose machinery in factory floors and automated assembly lines where reliability matters. Feature: Voltage flexibility with 115 V operation and 208–230 V capability plus direct-on-line starting. Business Impact: Lowers regional inventory requirements and shortens commissioning time, accelerating project timelines. Application: Well suited for small pumps, fans, and feeders in machine tools and material handling systems. Feature: Regreasable 6203 ball bearings and serviceable lubrication. Business Impact: Extends bearing life, simplifies maintenance scheduling, and reduces spare parts costs. Application: Continuous-duty or high-cycle equipment in conveyors and packaging equipment. Feature: 2-pole, 60 Hz performance with 3450 r/min (3600 r/min synchronous) speed, frame size 48. Business Impact: Delivers predictable torque and compatibility with standard mounting footprints, enabling straightforward retrofits. Application: Light industrial drives, small conveyors, and fans on OEM lines. Feature: 0.33 HP output with PF 0.96 and 72% efficiency, plus 1.35 service factor and RoHS compliance. Business Impact: Improves overall energy efficiency and regulatory compliance while reducing energy costs and retrofit risk. Application: Suitable for regulated environments seeking reliable, cost-effective general-purpose motors.
