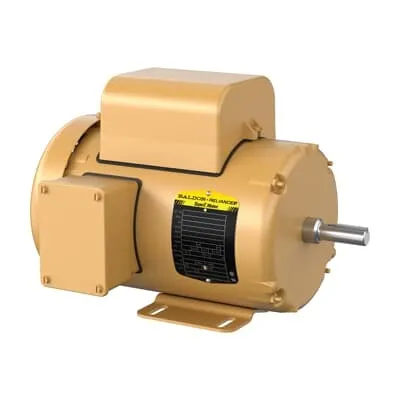

ABB 7BEL3507 General Purpose Motor - NEMA Premium
Part Number: 7BEL3507
Quick Summary
ABB 7BEL3507 General Purpose Motor is a compact single-phase motor designed for light-industrial equipment and conveyors. Engineers often struggle to find a replacement that fits a 56-frame footprint while delivering reliable start-up on 115 V systems. It carries critical certifications such as NEMA Premium efficiency, CSA, and UR, reinforcing safety and energy compliance. Designed for OEMs and service teams, this motor offers 60 Hz operation, TEFC enclosure, and straightforward installation to minimize downtime and total cost of ownership. With a 0.75 HP rating and Baldor-Reliance heritage, it delivers consistent performance across common general-purpose applications while maximizing uptime and return on investment.
Product Information
Extended Description
7BEL3507 ABB: General Purpose Motor 0.75 Hp 115 V (EL3507)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1755RPM,1PH,60HZ,56,3522LC,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EL3507
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
35LYE008: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
EL3507
Gross Volume
2110.969 in³
Gross Weight
44 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.75HP,1755RPM,1PH,60HZ,56,3522LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 0.75 HP, 1800 RPM, Frame Size 56, Standard Mounting, 1 Phase, TEFC Enclosure, 115/208-230 V, 60 Hz (EL
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
90 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
44 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.3 A | 3.4 A | 3.15 A
Rated Efficiency
82.50 %
Rated Speed
1755 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56, Standard, 1 PH, TEFC, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
L
Voltage Rating
115 V | 208 V | 230 V
Feature: TEFC enclosure provides rugged protection against dust and moisture, reducing wear on windings and extending motor life. Business Impact: Improves reliability in harsh factory environments and lowers maintenance costs. Application: Ideal for general-purpose motors in dusty conveyors and pumps where enclosure integrity matters. Feature: 56-frame, foot-mounted design with a 0.63 in shaft and horizontal mounting. Business Impact: Simplifies installation and enables compact layouts in small control cabinets and equipment housings. Application: Suitable for legacy machines or OEM skid-mounts requiring a standard 56 frame footprint. Feature: Single-phase 115 V / 208-230 V with 60 Hz operation. Business Impact: Broad power-supply compatibility reduces wiring changes and installation time, delivering quick on-site commissioning. Application: Common in light-industry drives, fans, and basic conveyors. Feature: 0.75 HP, 1755 r/min, 4-pole, service factor 1.25. Business Impact: Delivers reliable startup and sustained performance with a healthy margin for startup transients and load variations. Application: General-purpose machinery and equipment with modest torque requirements. Feature: Efficiency 82.5% and grease-lubricated, regreasable bearings (6205 Ball). Business Impact: Lower energy costs over the lifecycle and easier maintenance planning with longer bearing life. Application: Continuous-duty applications in production lines with energy-performance goals. Feature: Certifications including CSA, CSA EEV, UR, and NEMA Premium. Business Impact: Supports regulatory compliance and market acceptance across regions. Application: Suitable for regulated industries and OEMs targeting high-quality, certifiable components.Feature: Direct on line starting and TEFC, frame 56, foot-mounted with 4-pole design. Business Impact: Reduces soft-start requirements and simplifies control-system integration. Application: Plug-and-play installation in standard industrial automation setups and retrofits.
Get a Quick Quote for a ABB 7BEL3507
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEL3507?
Enquire Now
FAQs
Yes. The 7BEL3507 is a 1PH motor rated for 115 V (with 208-230 V support) and uses a 56 frame with foot mounting. It features a TEFC enclosure for robust field installations and direct-on-line starting to simplify electrical integration in standard control panels.
Key specs include 0.75 HP, 1755 r/min, 4-pole, 60 Hz, 1-phase operation, frame size 56, shaft diameter 0.63 in, and a service factor of 1.25. Rated currents are 6.3 A at 115 V and 3.4–3.15 A at higher voltages, with an efficiency of about 82.5%.
Yes. The 7BEL3507 is designed for continuous duty with a TEFC enclosure and regreasable bearings, making it well-suited for light-industrial conveyors, pumps, and fans where reliability and long service life are essential.
The motor carries CSA, CSA EEV, UR, and NEMA Premium certifications. These ensure regulatory compliance, energy efficiency, and suitability for markets with strict safety and performance standards.
Leverage its foot-mounted, 56-frame design for straightforward installation, and utilize regreasable bearings for extended service life with minimal maintenance. Plan energy usage around its 82.5% efficiency and take advantage of the 60 Hz, 1PH configuration to minimize wiring complexity.
